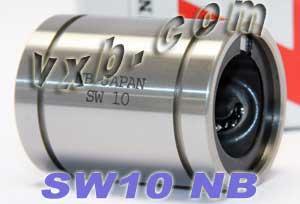

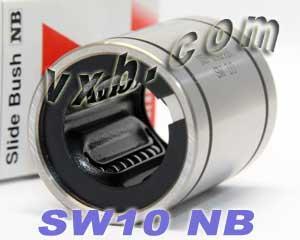

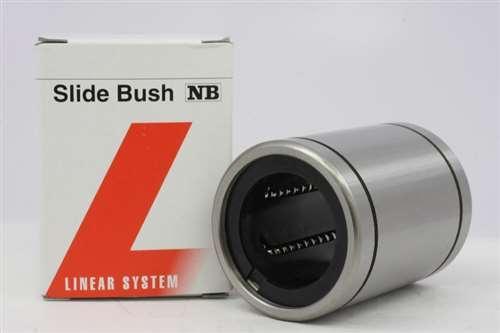

NB SW10 5/8 Ball Bushing Linear Motion

NB SW10 5/8 Ball Bushing Linear Motion

$41.39 USD
$45.99 USD $41.39 USD
Promotion Épuisé
Frais d'expédition calculés à l'étape de paiement.
SW10 NB Linear System
Nippon Bearing Linear System
Made in Japan


5/8" Bore linear motion ball bushing/bearing, the innerdiameter(bore) is 5/8" inch dimensions with steelretainer, bearing is high accuracy grade linear bushing,series mainly used in the USA, NB brand (Nippon Bearing Linear Systems), made in Japan.
  • SW10 NB Ball Bearing
  • Nippon Bearing Linear System
  • Number of ball circuits: 4
  • Size: 5/8" x 1 1/8" x 1 1/2" inch
  • Inner Diameter: 5/8" inch
  • Outer Diameter: 1 1/8" inch
  • Length: 1 1/2" inch
  • Basic Dynamic Load Rating: 774 N
  • Basic Static Load Rating: 1,180 N


Dimensions (inches) Eccentricity Radial Clearance
dr D L B W D1
inch tolerance
inch		 inch tolerance
inch		 inch tolerance
inch		 inch tolerance
inch		 precision
inch		 high
inch
5/8" 0-.00025 0-.0004 1-1/8" 0-.0005 1-1/2" 0-.008 1.1039" 0-.008 0.0559" 1.059" 0.0003 0.0005 0.0001
