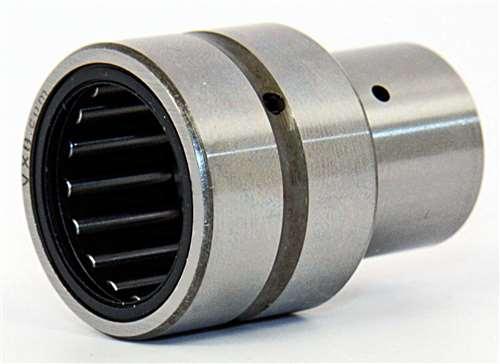

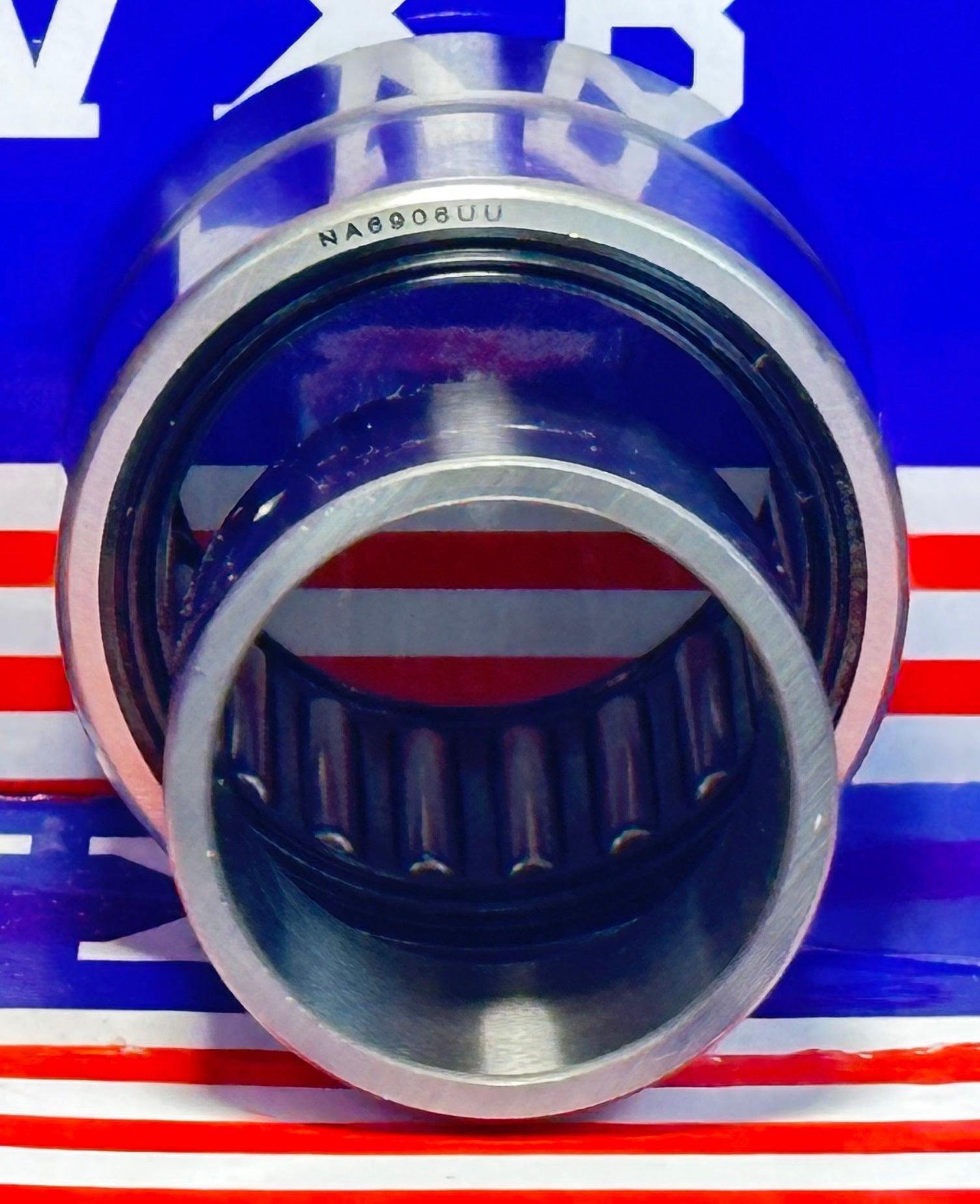

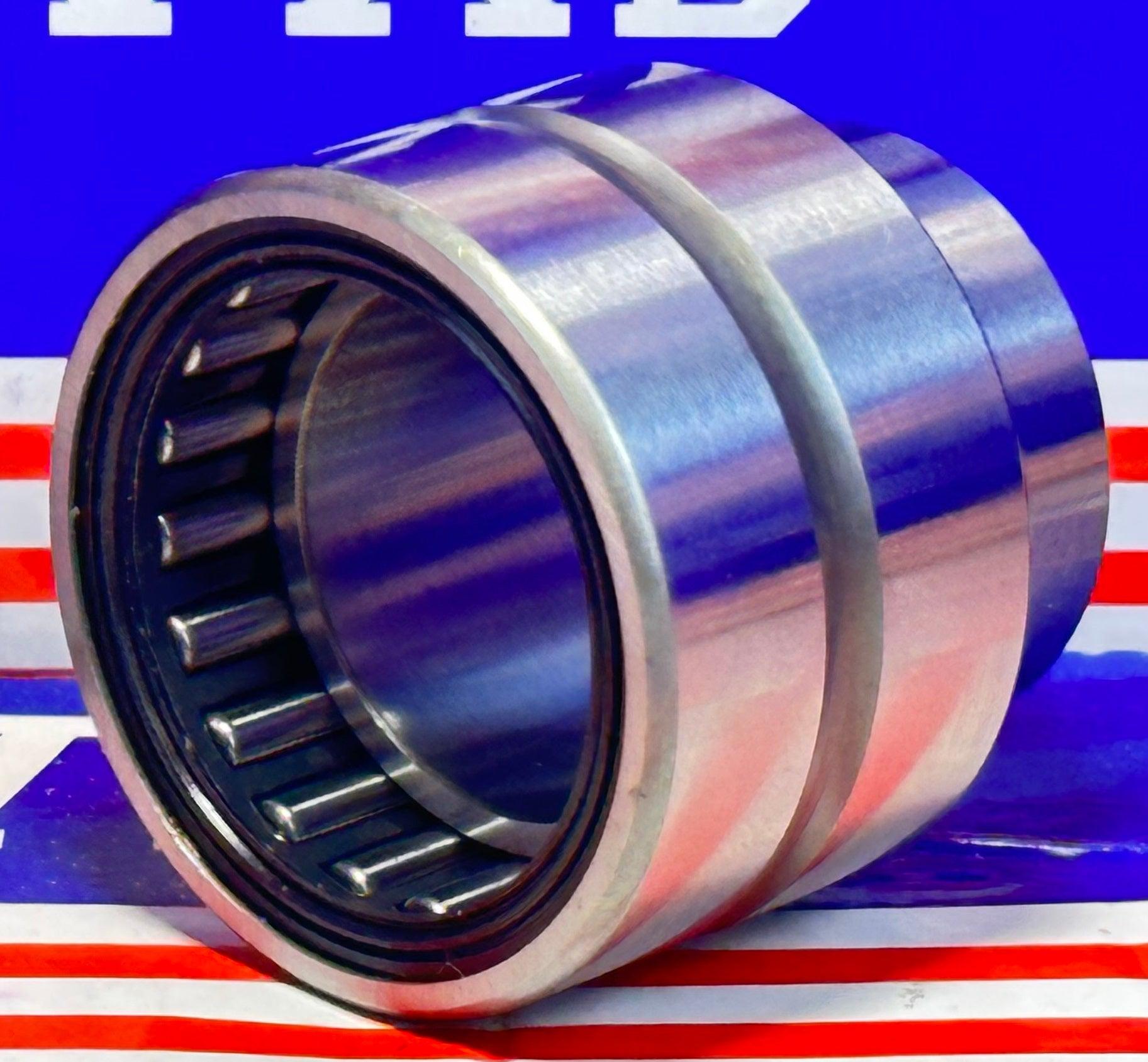

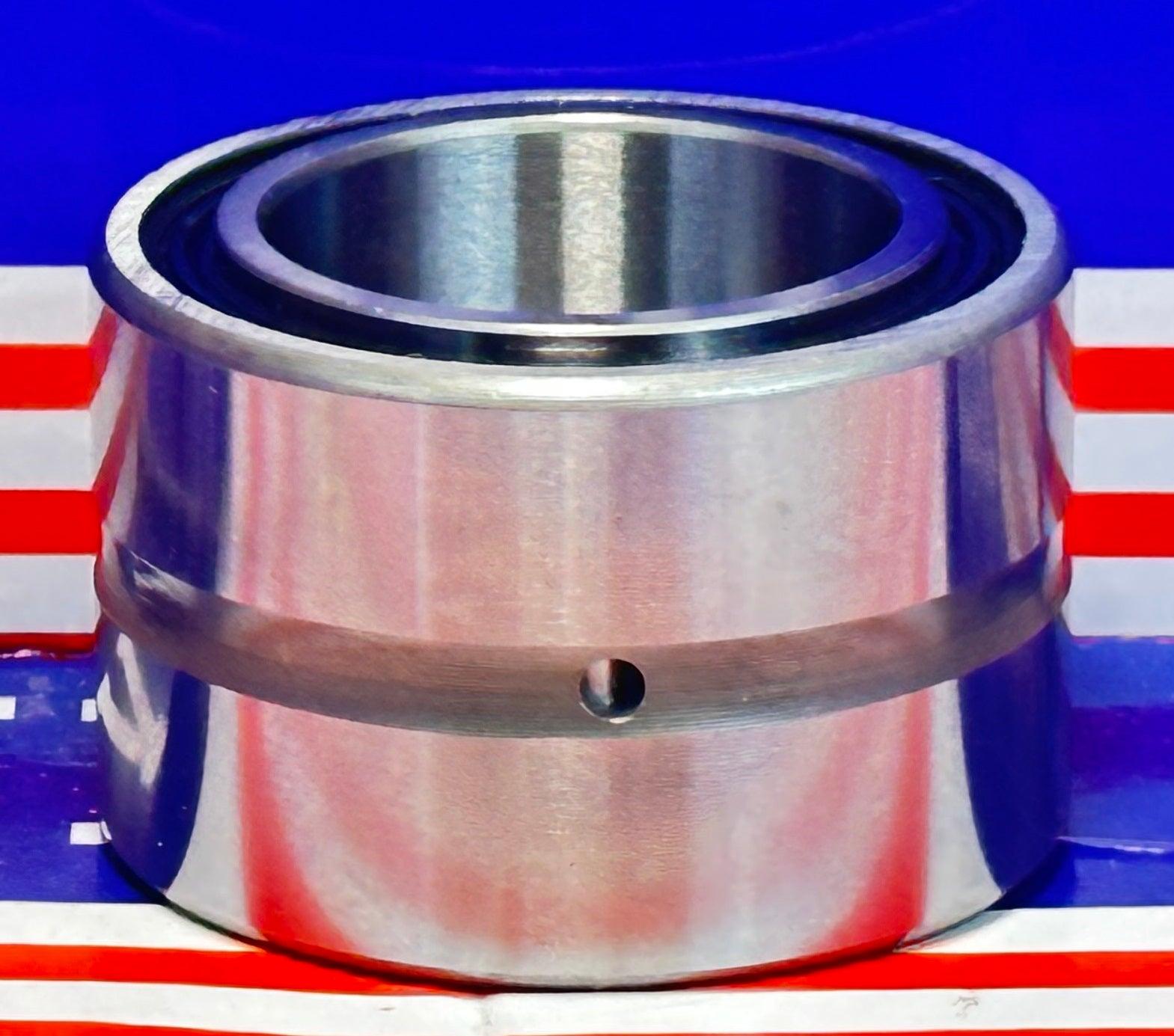

NA6906UU Needle Roller Bearing 30x47x31 - Machined Type

Machined needle roller bearing NA6906UU, measures an inner diameter of 30mm, the outer diameter is 47mm, width of the cone (inner ring) is 31mm, and the outer ring width is 30mm.

• NA6906UU Bearing
• Needle Roller Bearing
• Closures: Rubber Sealed (both sides)
• Dimensions: 30mm x 47mm x 31mm /Metric
• ID (inner diameter)/Bore: 30mm
• OD (outer diameter): 47mm
• inner ring: 31mm
• outer ring: 30mm
• Size: 30mm x 47mm x 31mm
• Quantity: 1 Bearing
• Basic Dynamic Load Rating: 4,090 KGF
• Basic Static Load Rating: 6,430 KGF





  Dimensions
  d	dr	D	B	B1
  30mm	35mm	47mm	30mm	31mm
