1/4" x 11/16" x 5/16" Flanged Ball Bearing Heavy Duty F0822

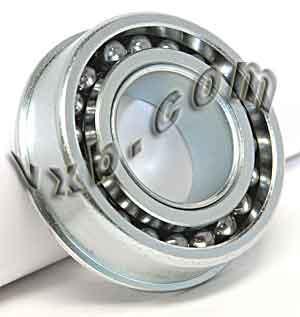

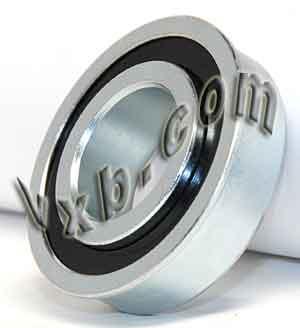

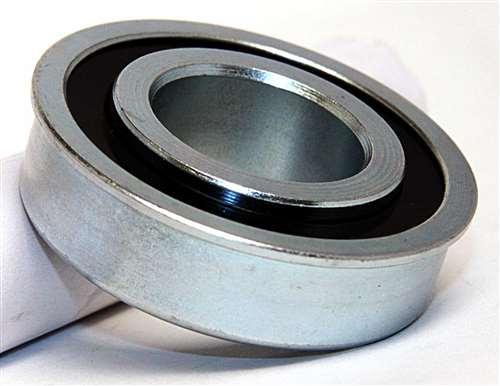

F0822 Flanged Ball Bearing - Full Complement
1/4" x 11/16" x 5/16" inch - High-Capacity Bearing

The F0822 Full Complement Flanged Ball Bearing is designed for maximum load capacity in compact spaces. Featuring no cage, this bearing accommodates more balls than standard caged types, resulting in increased strength and higher performance under radial loads. Its integrated flange offers easy mounting and axial positioning, making it ideal for mechanical assemblies, small motors, and custom machinery.

With dimensions of 1/4" bore, 11/16" outer diameter, and 5/16" width, the F0822 is a go-to solution where precision and durability are essential.

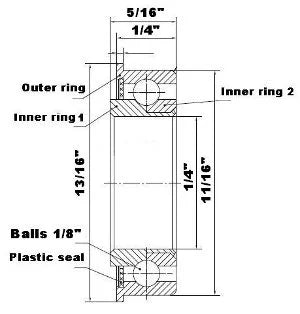

🔧 Product Specifications:

• ✅ Item: F0822 Full Complement Flanged Ball Bearing

• ✅ Type: Deep Groove Flanged Ball Bearing

• ✅ Design: Full Complement (No Cage) for Maximum Ball Count

• ✅ Bore Diameter (ID): 1/4" (0.25")

• ✅ Outer Diameter (OD): 11/16" (0.688")

• ✅ Width: 5/16" (0.313")

• ✅ Outer Ring Width: 1/4"

• ✅ Flange Diameter (G): 13/16"

• ✅ Ball Size: 1/8"

• ✅ Quantity: 1 Bearing

💡 Customer Tip - Why choose a full complement bearing over one with a cage?
Answer: Full complement bearings can carry higher radial loads because they contain more rolling elements. They're ideal for applications with heavy loads and slow to moderate speeds where strength is prioritized over high-speed capability.

⚙️ Built for strength and stability, the F0822 is your high-load solution when space is tight and performance can't be compromised.
