VXB

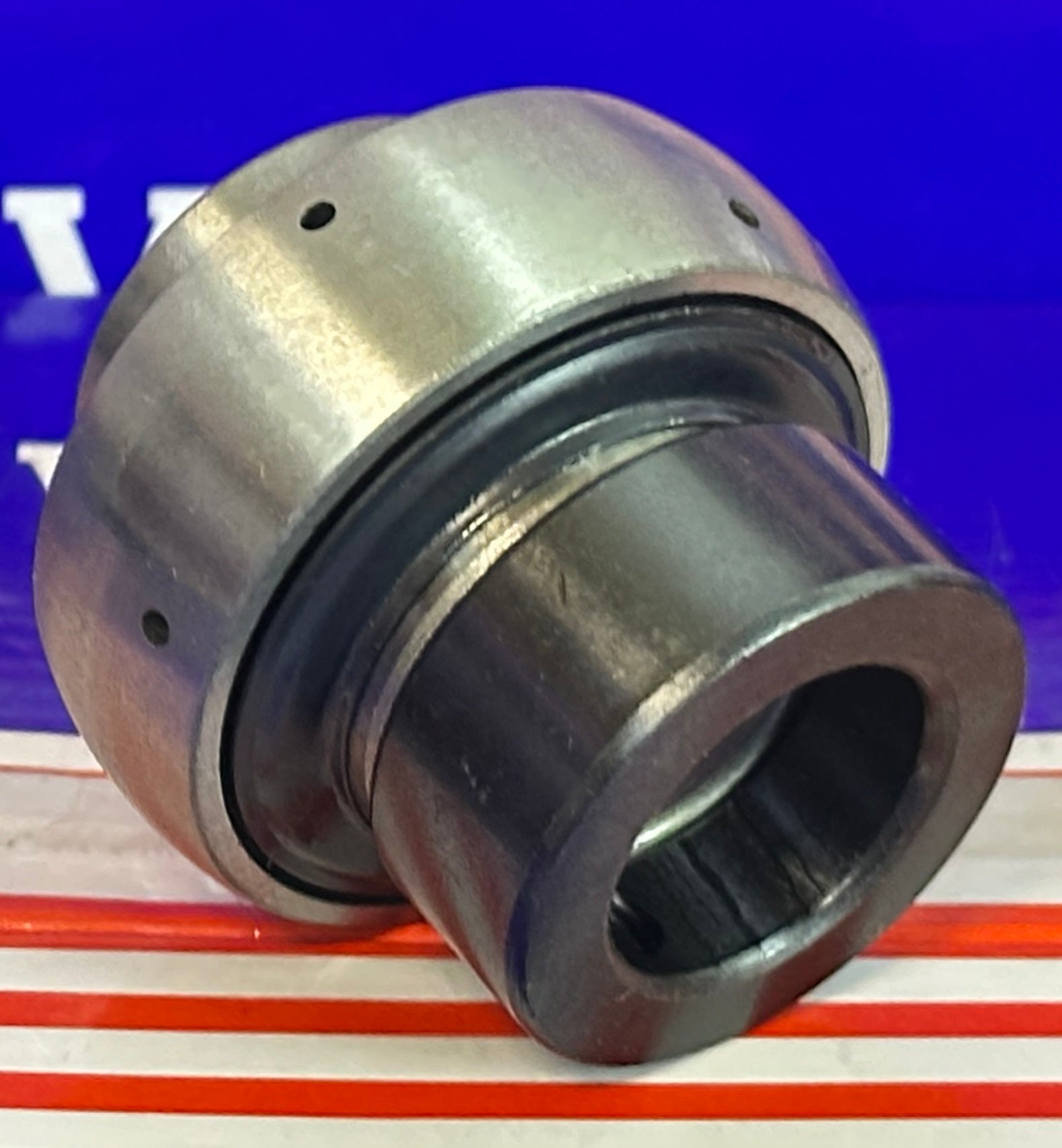

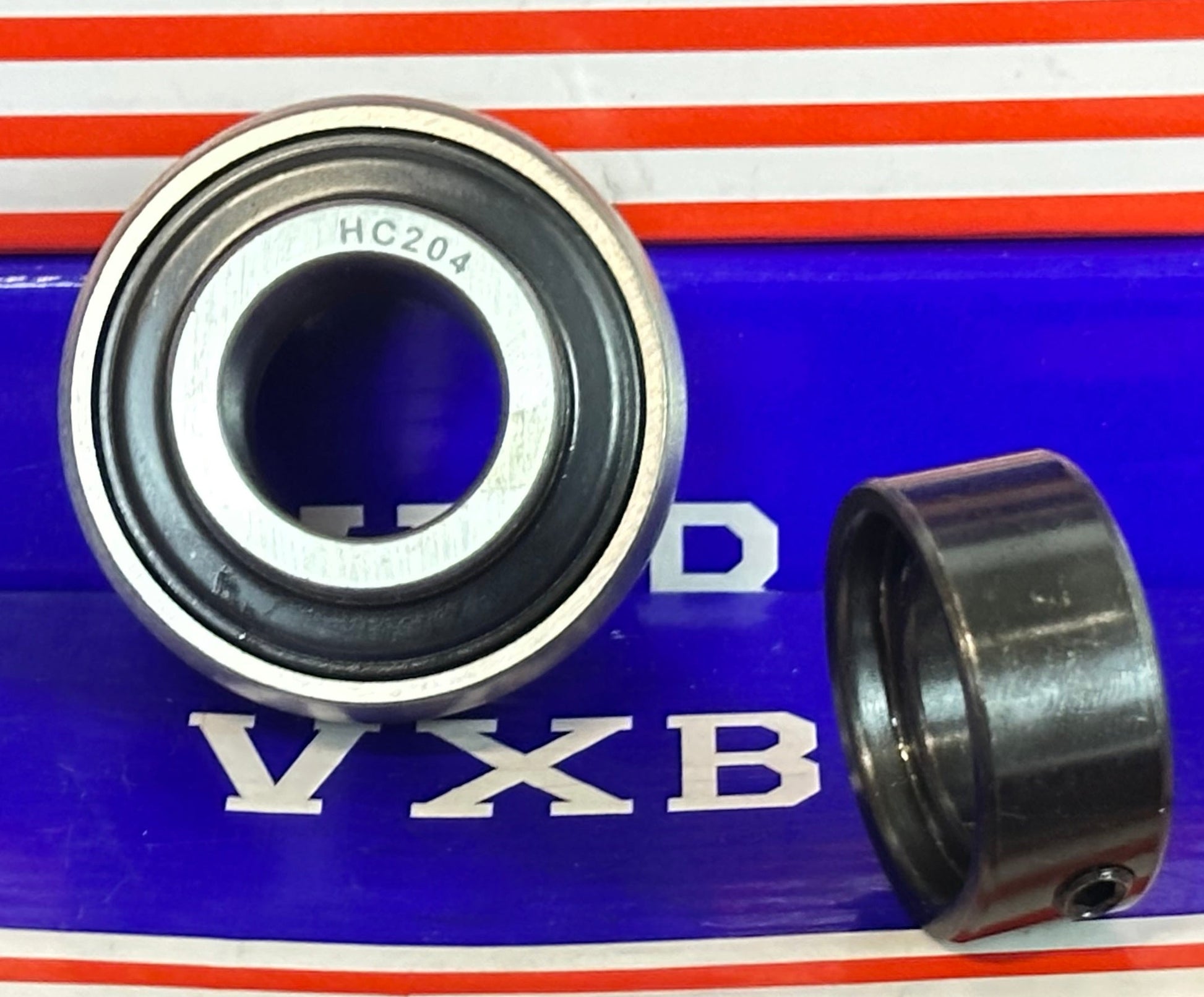

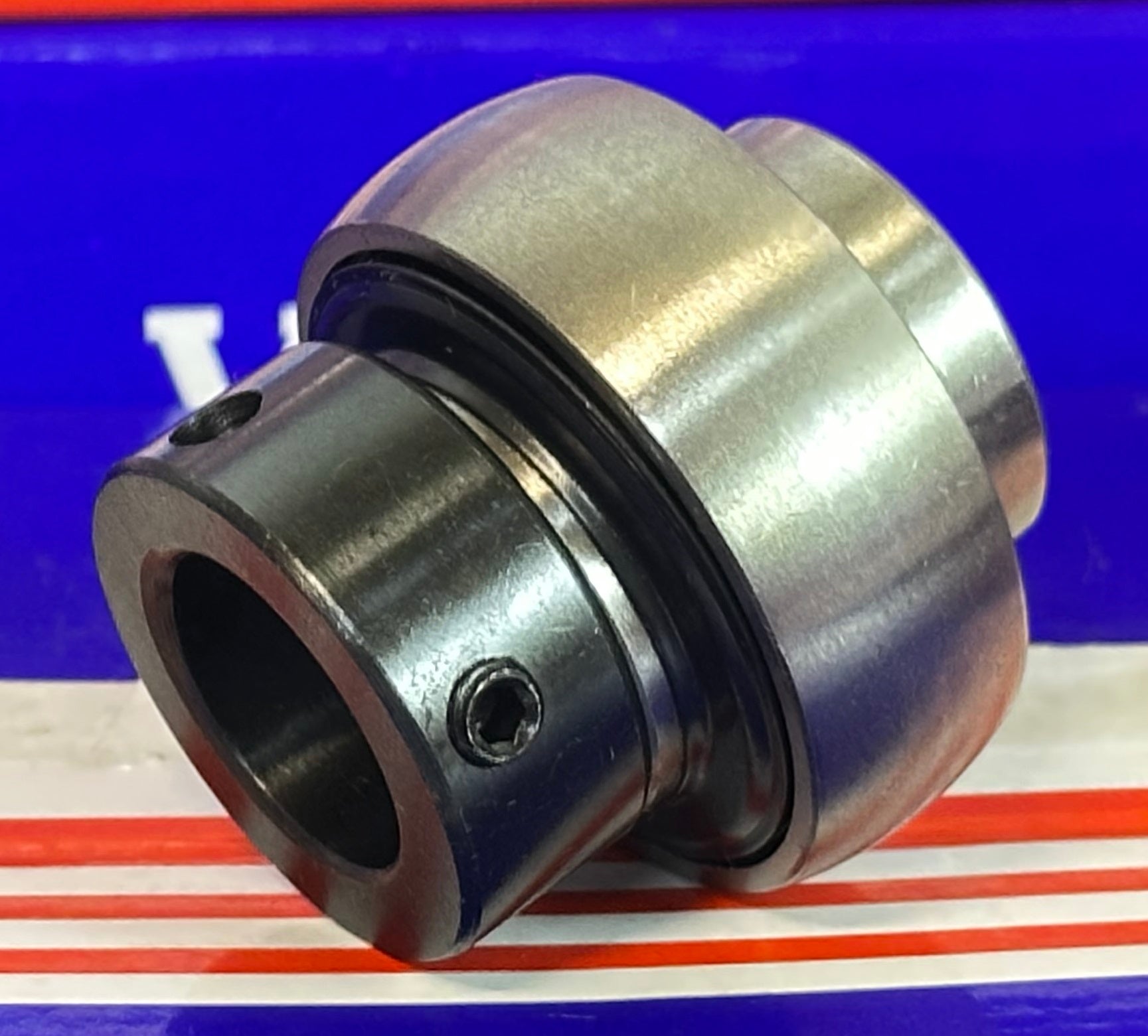

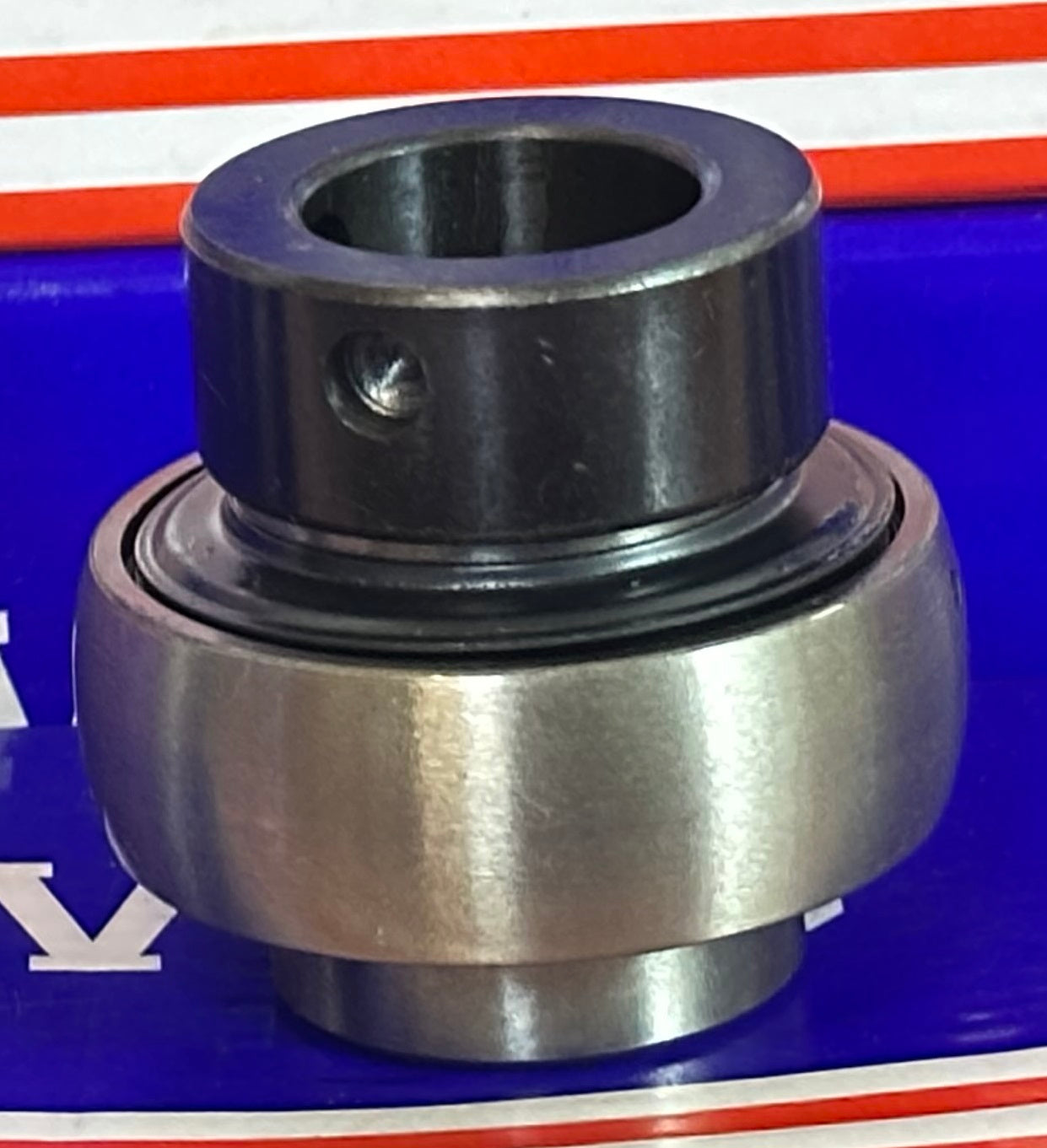

HC204 20mm Insert Eccentric Locking Collar 20mm

HC204 20mm Insert Eccentric Locking Collar 20mm

Prix habituel $17.49 USD
Prix habituel $24.99 USD Prix promotionnel $17.49 USD
Promotion Épuisé
Frais d'expédition calculés à l'étape de paiement.
HC204-20mm Bearing Insert
Eccentric Locking Collar
20mm Inner Diameter


HC204-20mm Bearing Insert eccentric Collar, Bearing is Standard load capacity, bearing is Wide inner ring with spherical outer ring, Bearing is relubrication groove with oil hole on set screw side, bearing has oil hole opposite groove makes it interchangeable with all manufacturers, bearing is nylon patched class 3A set screw, Standard seal is R-Seal.

  • HC204-20mm Bearing
  • Bearing Insert
  • Shaft Diameter: 20mm
  • Dynamic Load Rating: 12900 N
  • Static Load Rating: 6270 N
  • Quantity: 1 Bearing
  • Ball Bearing

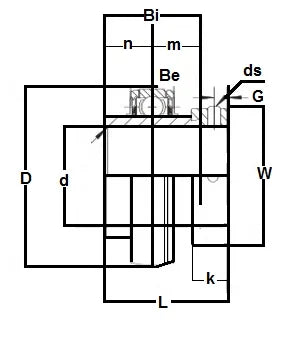

Dimensions (mm)
D L Bi Be r n m W K G ds(UNF-Thread)
47 43.5 34 15 1.5 17 17 32 13.5 5 M6xP1.0


Afficher tous les détails
