HC201-8 Bearing insert - eccentric collar 1/2"

HC201-8 Bearing insert - eccentric collar 1/2"

$31.49 USD
$34.99 USD $31.49 USD
Promotion Épuisé
Frais d'expédition calculés à l'étape de paiement.
HC201-8 Bearing Insert
Eccentric Locking Collar
1/2" Inch Inner Diameter


HC201-8 Bearing Insert, Bearing is Standard load capacity, bearing is wide inner ring with spherical outer ring, Bearing has re-lubrication groove with oil hole on set screw side, bearing has oil hole opposite groove makes it interchangeable with all manufacturers, bearing is nylon patched class 3A set screw, Standard seal is R-Seal.

  • HC201-8 Bearing
  • Bearing Insert
  • Shaft Diameter: 1/2" Inch
  • Dynamic Load Rating: 12900 N
  • Static Load Rating: 6270 N
  • Quantity: 1 Bearing
  • Ball Bearing

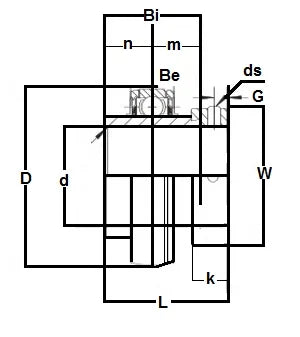

Dimensions (Inches)
D L Bi Be r n m W K G ds(UNF-Thread)
1-55/64" 1-23/32" 1-25/64" 19/32" 0.059" 21/32" 21/32" 1-1/4" 17/32" 13/64" 1/4-28x1/4
