FYH UCFCX09 45mm Round Flanged Bearing Mounted Bearing

FYH UCFCX09 45mm Round Flanged Bearing Mounted Bearing

$142.19 USD
$157.99 USD $142.19 USD
Promotion Épuisé
Frais d'expédition calculés à l'étape de paiement.

UCFCX09 FYH Bearing
Round flanged Mounted Bearing
Cylindrical bore (with set screws)
45mm Inner Diameter Bearing

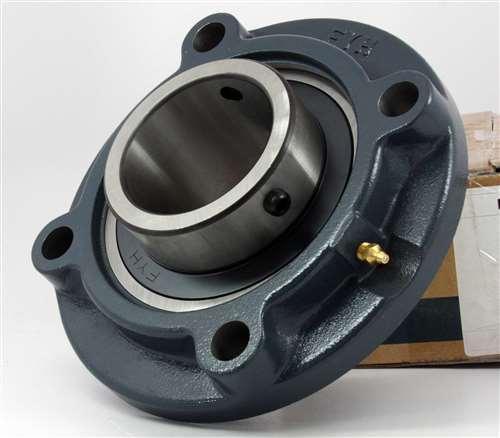

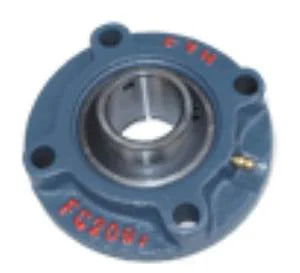

This four-bolt flange cartridge unit has a round cartridge on the backside of the flange which allows for precise mounting and alignment.Application are Rotating drum, rotating roller and areas where precise mounting accuracy is required.

  • UCFCX09 Bearing
  • Round Flanged Bearing
  • Basic Load (Cr): 35.1 KN
  • Basic Load (Cor): 23.3 KN
  • Bolt Size: M12
  • Bearing No: UCX09
  • Quantity: One bearing

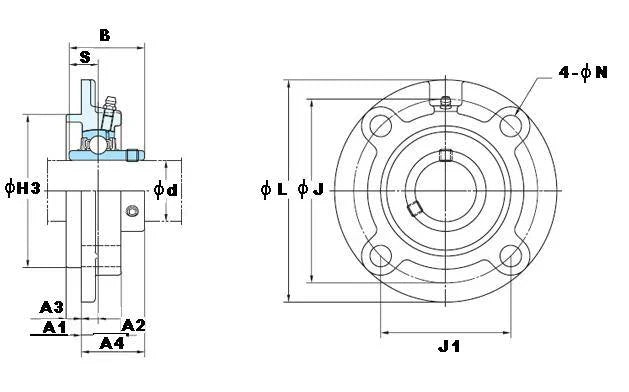

Dimensions (mm)
d L H3 J J1 N A1 A2 A3 A4 B S
45 155 108 130 91.9 14 25 8 12 40.6 51.6 19
