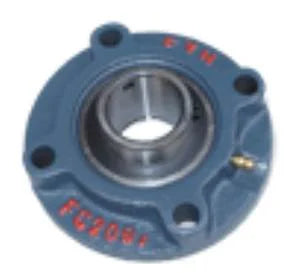

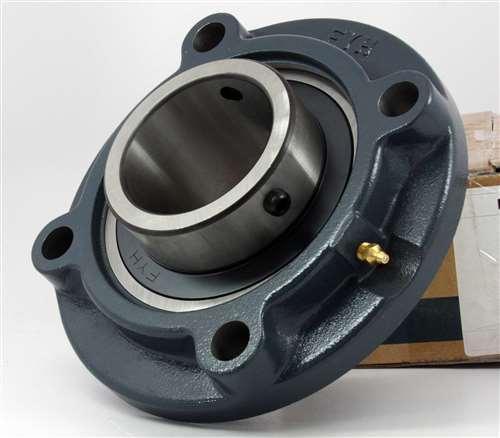

FYH UCFCX05 25mm Round Flanged Bearing Mounted Bearing

FYH UCFCX05 25mm Round Flanged Bearing Mounted Bearing

$89.09 USD
$98.99 USD $89.09 USD
Promotion Épuisé
Frais d'expédition calculés à l'étape de paiement.

UCFCX05 FYH Bearing
Round flanged Mounted Bearing
Cylindrical bore (with set screws)
25mm Inner Diameter Bearing

This four-bolt flange cartridge unit has a round cartridge on the backside of the flange which allows for precise mounting and alignment.Application are Rotating drum, rotating roller and areas where precise mounting accuracy is required.

  • UCFCX05 Bearing
  • Round Flanged Bearing
  • Basic Load (Cr): 19.5 KN
  • Basic Load (Cor): 11.3 KN
  • Bolt Size: M8
  • Bearing No: UCX05
  • Quantity: One bearing

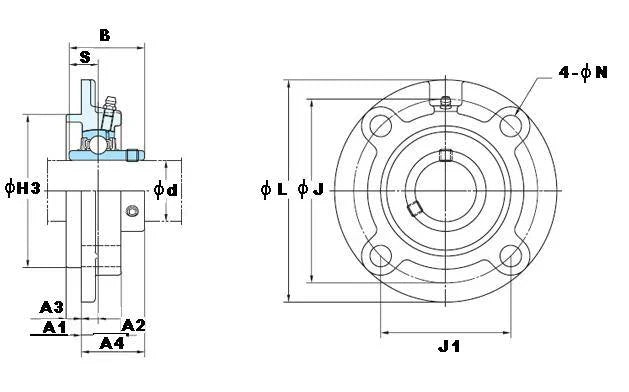

Dimensions (mm)
d L H3 J J1 N A1 A2 A3 A4 B S
25 111 76 92 65 9.5 24 10 6 32.2 38.1 15.9
