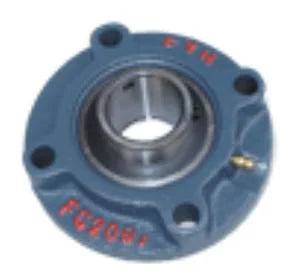

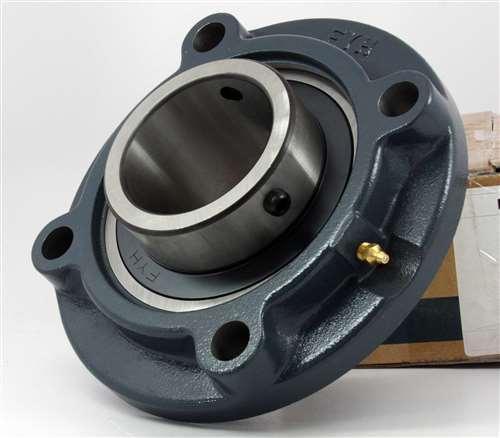

FYH UCFC215-48 3 Round Flanged Bearing Mounted Bearing

FYH UCFC215-48 3 Round Flanged Bearing Mounted Bearing

$329.40 USD
$366.00 USD $329.40 USD
Promotion Épuisé
Frais d'expédition calculés à l'étape de paiement.
UCFC215-48 FYH Bearing
Round flanged Mounted Bearing
Cylindrical bore (with set screws)
3" Inner Diameter Bearing

This four-bolt flange cartridge unit has a round cartridge on the backside of the flange which allows for precise mounting and alignment.Application are Rotating drum, rotating roller and areas where precise mounting accuracy is required.

  • UCFC215-48 Bearing
  • Round Flanged Bearing
  • Basic Load (Cr): 67.4 KN
  • Basic Load (Cor): 48.3 KN
  • Bolt Size: 5/8"
  • Bearing No: UC215-48
  • Quantity: One bearing

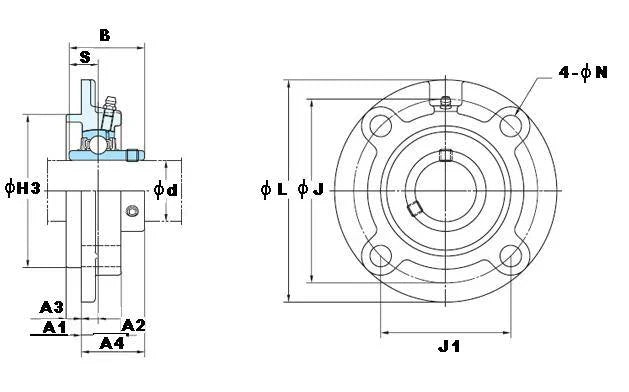

Dimensions (Inches)
d L H3 J J1 N A1 A2 A3 A4 B S
3" 8-21/32" 6.3" 7-1/4" 5-1/8" 3/4" 1-9/16" 45/64" 5/8" 2-15/32" 3.063" 1.331"
