FYH Bearing UCT204-12 3/4 Take Up Mounted Bearing
FYH Bearing UCT204-12 3/4 Take Up Mounted Bearing
Prix habituel
$55.79 USD
Prix habituel
$61.99 USD
Prix promotionnel
$55.79 USD
Prix unitaire
/
par
Frais d'expédition calculés à l'étape de paiement.
Impossible de charger la disponibilité du service de retrait

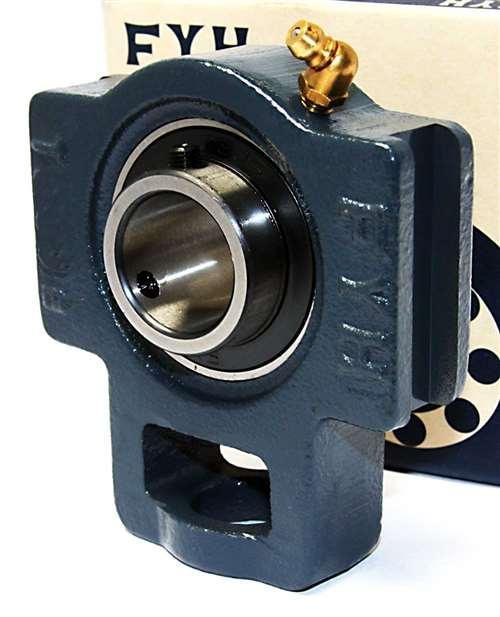

| UCT204-12 FYH Bearing Take Up Mounted Bearing Cylindrical bore (with set screws) 3/4" Inner Diameter Bearing |
The take-up unit fits into a take-up frame and allows for linear adjustment along the plane of the unit. Both international and domestic slot versions are available.Applications is Belt conveyor, bearing is used where the shaft distance must be adjusted.
|

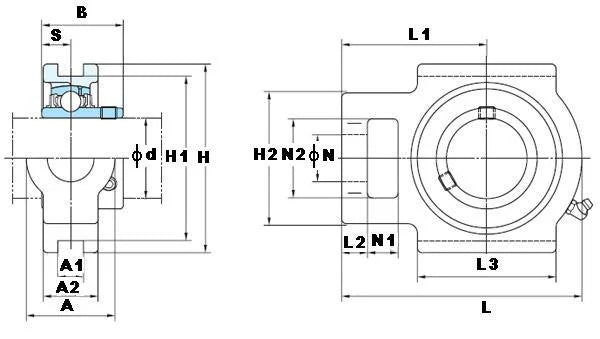

| Dimensions (Inches) | |||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| d | A | A1 | A2 | H | H1 | H2 | L | L1 | L2 | L3 | N | N1 | N2 | B | S |
| 3/4" | 1-1/4" | 15/32" | 13/16" | 3-1/2" | 2-63/64" | 2" | 3-11/16" | 2-13/32" | 13/32" | 2" | 3/4" | 5/8" | 1-1/4" | 7/32" | 1/2" |
