FYH Bearing UCT202-10 5/8 Take Up Mounted Bearing

FYH Bearing UCT202-10 5/8 Take Up Mounted Bearing

$51.29 USD
$56.99 USD $51.29 USD
Promotion Épuisé
Frais d'expédition calculés à l'étape de paiement.

UCT202-10 FYH Bearing
Take Up Mounted Bearing
Cylindrical bore (with set screws)
5/8" Inner Diameter

The take-up unit fits into a take-up frame and allows for linear adjustment along the plane of the unit. Both international and domestic slot versions are available.Applications is Belt conveyor, bearing is used where the shaft distance must be adjusted.

  • UCT202-10 Bearing
  • Take Up Mounted Bearing
  • Basic Load (Cr): 12.8 KN
  • Basic Load (Cor): 6.65 KN
  • Bolt Size: 5/16"
  • Bearing No: UC202-10
  • Quantity: One bearing

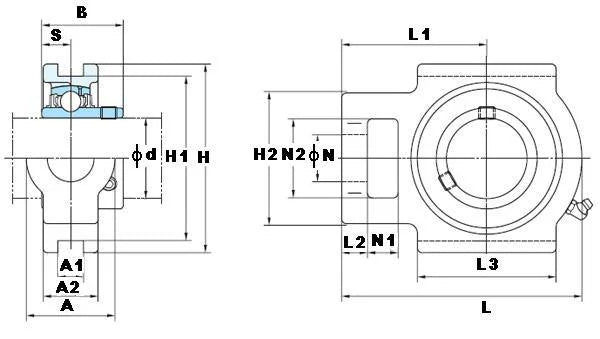

Dimensions (Inches)
d A A1 A2 H H1 H2 L L1 L2 L3 N N1 N2 B S
5/8" 1-1/4" 15/32" 13/16" 3-1/2" 2-63/64" 2" 3-11/16" 2-13/32" 13/32" 2" 3/4" 5/8" 1-1/4" 1.22" 1/2"
