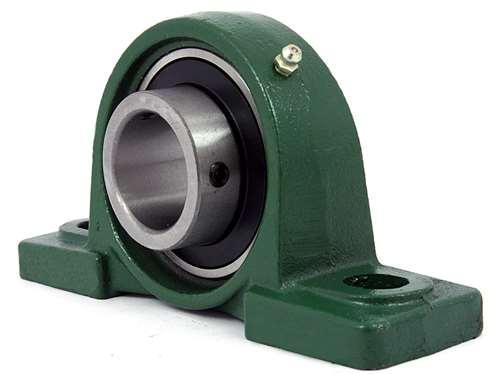

FYH Bearing UCP328 140mm Pillow Block Mounted Bearing

FYH Bearing UCP328 140mm Pillow Block Mounted Bearing

$2,959.20 USD
$3,288.00 USD $2,959.20 USD
Promotion Épuisé
Frais d'expédition calculés à l'étape de paiement.
UCP328 FYH Bearing
Pillow Block Bearing
Cylindrical bore (with set screws)
140mm Inner Diameter



This is the most common type of mounted ball unit. The rib at the bottom of the housing mounting section provides for a robust unit that can withstand great loads from any direction. Mounted units with cast steel housings are also available in this series, and are used for applications with severe loading and shock load conditions. Tapered-bore style units are offered individually and adapters are sold separately.

  • UCP328 Bearing
  • Mounted Ball Bearing
  • Shaft Dia: 140mm
  • Bolt Size: M33
  • Bearing No: UC328
  • Basic Load (Cr): 253 KN
  • Basic Load (Cor): 246 KN
  • Quantity: 1 Bearing

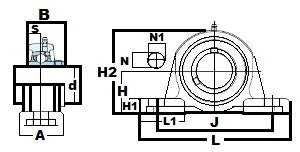

Dimensions (mm)
d H L A J N N1 H1 H2 L1 S
140 200 620 140 500 40 55 60 393 185 59
