FYH

FYH Bearing UCFL201-8E 1/2 Flanged Mounted Bearing

FYH Bearing UCFL201-8E 1/2 Flanged Mounted Bearing

$44.99 USD
$49.99 USD $44.99 USD
Promotion Épuisé
Frais d'expédition calculés à l'étape de paiement.

UCFL201-8E FYH Bearings
2 Bolts Flanged Cast Housing
Cylindrical bore (with set screws)
1/2" Inner Diameter Bearing

This two-bolt flange has a bolthole center dimension equal to that of the diagonal bolthole center of the four-bolt flange. Therefore, the two different styles are compatible, however, the two-bolt style utilizes less space and also weighs less. Applications is Roller conveyor and environments where mounting area is limited.

  • UCFL201-8E Bearing
  • Mounted Bearings
  • Bolt Size: 5/16"
  • Basic Load (Cr): 12.8 KN
  • Basic Load (Cor): 6.65 KN
  • Bearing No: UC201-8
  • Quantity: One bearing

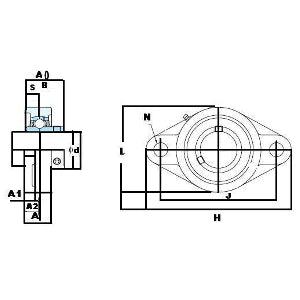

Dimensions (Inches)
d H L A J N A1 A2 A0 B S
1/2" 4 7/16" 2 3 /8" 1" 3 35/64" 15/32" 7/16" 19/32" 1-5/16" 1.22" 1/2"
