FYH Bearing UCFL-204-12E 3/4 Flanged Mounted Bearing

FYH Bearing UCFL-204-12E 3/4 Flanged Mounted Bearing

$46.79 USD
$51.99 USD $46.79 USD
Promotion Épuisé
Frais d'expédition calculés à l'étape de paiement.
UCFL-204-12E FYH Bearing
2 Bolts Flanged Cast Housing
Cylindrical bore (with set screws)
3/4" Inner Diameter Bearing

This two-bolt flange has a bolthole center dimension equal to that of the diagonal bolthole center of the four-bolt flange. Therefore, the two different styles are compatible, however, the two-bolt style utilizes less space and also weighs less. Applications are Roller conveyor and environments where mounting area is limited.

  • UCFL-204-12E Bearing
  • Mounted Bearings
  • Bolt Size: 5/16"
  • Basic Load (Cr): 12.8 KN
  • Basic Load (Cor): 6.65 KN
  • Bearing No: UC204-12
  • Quantity: One bearing

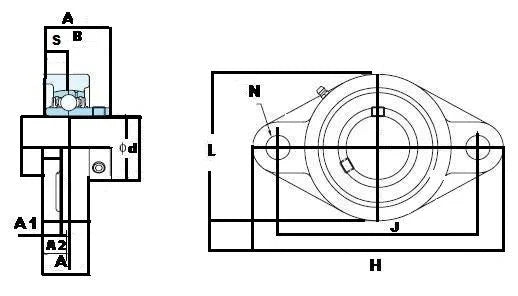

Dimensions (Inches)
d H L A J N A1 A2 A0 B S
3/4" 4-7/16" 2-3/8" 1" 3-17/32" 25/64" 7/16" 19/32" 1-5/16" 1.22" 1/2"
