FYH Bearing UCF322 110mm Square Flanged Mounted Bearing

FYH Bearing UCF322 110mm Square Flanged Mounted Bearing

$1,481.39 USD
$1,645.99 USD $1,481.39 USD
Promotion Épuisé
Frais d'expédition calculés à l'étape de paiement.
UCF322 Square Flanged Mounted FYH Bearing
Cylindrical bore (with set screws)
110mm Inner Diameter Bearing


This heavy duty four-bolt flange unit has a round cartridge on the backside of the flange which allows for precise mounting and alignment.Applications Rotating drum, rotating roller, precise mounting accuracy is required

  • UCF322 FYH Ball Bearing
  • Mounted FYH Ball Bearing
  • Bolt Size: M36
  • Bearing Inner Diameter: 110mm
  • Bearing No: UC322
  • Basic Dynamic Load Rating (Cr): 205000 N
  • Basic Static Load Rating (Cor): 180000 N
  • Quantity: 1 Bearing

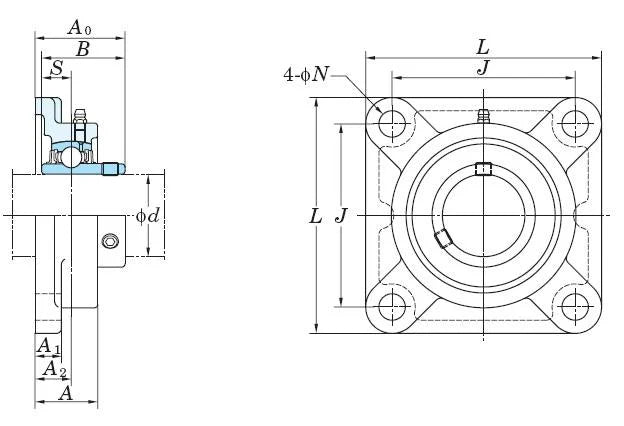

Dimensions (mm)
d L A J N A1 A2 A0 B S
110 340 96 266 41 35 60 131 117 46
