FYH Bearing 15mm UCT202E Take Up Mounted Bearing

FYH Bearing 15mm UCT202E Take Up Mounted Bearing

$53.99 USD
$59.99 USD $53.99 USD
Promotion Épuisé
Frais d'expédition calculés à l'étape de paiement.

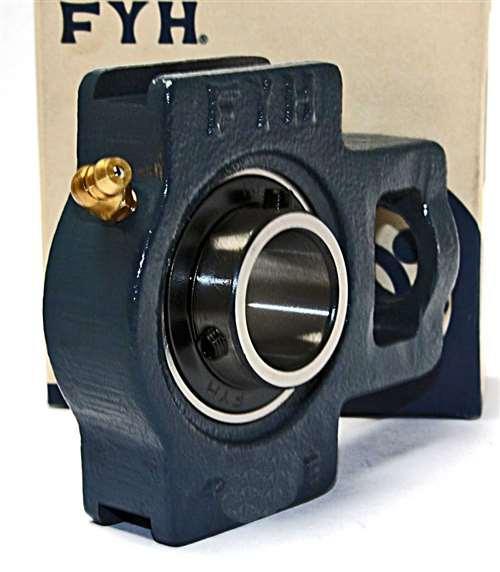

UCT202E FYH Bearing
Take Up Mounted Bearing
Cylindrical bore (with set screws)
15mm Inner Diameter Bearing

The take-up unit fits into a take-up frame and allows for linear adjustment along the plane of the unit. Both international and domestic slot versions are available.Applications are Belt conveyor and it is used where the shaft distance must be adjusted.

  • UCT202E Bearing
  • Take Up Mounted Bearing
  • Basic Load (Cr): 12,800 N
  • Basic Load (Cor): 6,650 N
  • Bearing No: UC202
  • Quantity: One bearing

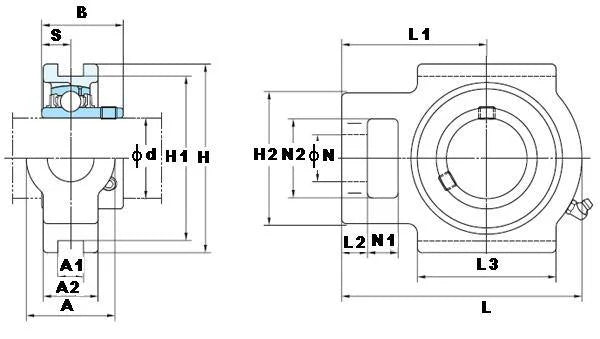

Dimensions (mm)
d A A1 A2 H H1 H2 L L1 L2 L3 N N1 N2 B S
15 32 13.5 21 89 76.2 51 94 61 10 51 19 16 32 31 12.7
