VXB

Female Rod End PHSB12 3/4 Right hand Bearing

Female Rod End PHSB12 3/4 Right hand Bearing

$13.99 USD
$19.99 USD $13.99 USD
Promotion Épuisé
Frais d'expédition calculés à l'étape de paiement.
Female Rod End
Right Hand PHSB12

Female Rod End PHSB12, Right hand Works with 3/4" Shafts, they are marked PHSB12 with 3/4" inner diameter, the internal thread size is 3/4", Here is the interchange designation in every brand:

  • PHSB12 Bearing
  • Female Rod Ends
  • Thread Size: 3/4" UNF
  • Quantity: 1 Bearing
  • Dynamic Load Rating: 29 KN
  • Static Load Rating: 29 KN

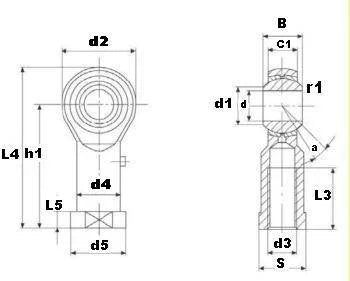

Dimensions (Inches)
 a
d B r1s C1 d1 d2 d3
UNF-2B		 h1 L3 L4 L5 d4 d5 S
3/4" 7/8" 0.5mm 11/16" 24.84mm 1-3/4" 3/4-16 2-7/8" 1-3/4" 3-3/4" 5/16" 1" 1-1/8" 1" 10


Afficher tous les détails
