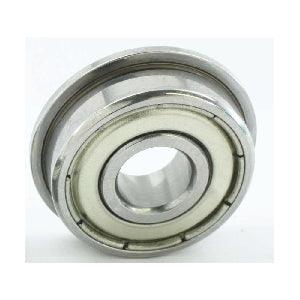

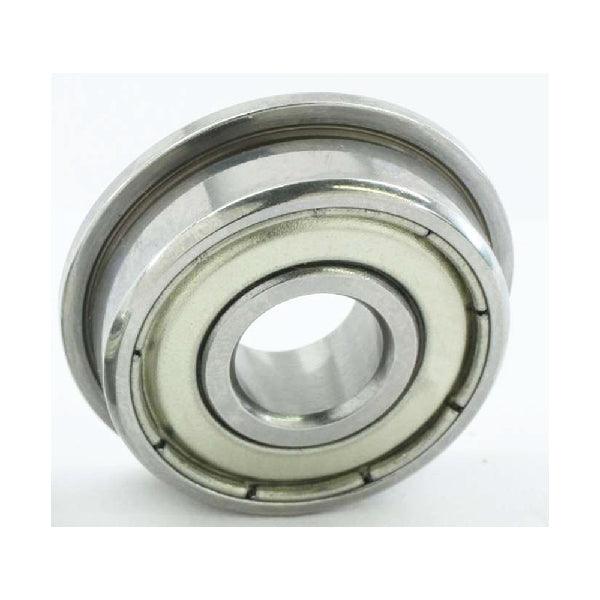

F628ZZ 8x24x8mm Shielded Miniature Flanged Bearing

High Quality Flanged Ball Bearing, a standard bearing size with dimensions commonly used across many industries: 8mmx24mmx8mm. F628ZZ is made from Chrome Steel and can rotate up to 80,000 rpm, each bearing has 2 Metal Shield to protect the bearing from dust or any possible contamination, F628ZZ are pre-lubricated with grease..

• Double Shielded F628ZZ Bearing
• Deep groove Flange ball bearing
• Quality: Electric motor quality
• Dimensions: 8x24x8mm/Metric
• ID (inner diameter)/Bore=8mm
• OD (outer diameter)=24mm
• Width/Height/thickness=8mm
• Width: 8mm
• Material: Chrome Steel
• Cage: Chrome Steel
• Shield Double Metal Shields
• Lubrication: Pre-lubricated with grease
• Quantity: 1 Bearing
• Dynamic load rating Cr: 3,350 N
• Static load rating Cor: 1,400 N
• Limiting Speed:
  • Grease Lubrication: 28,000 RPM
