AS30 One-Way 30x62x16 Bearing Support Required Backstop Clutch

AS30 One-Way 30x62x16 Bearing Support Required Backstop Clutch

Prix habituel $79.99 USD
Prix habituel $88.88 USD Prix promotionnel $79.99 USD
Promotion Épuisé
Frais d'expédition calculés à l'étape de paiement.
AS30 One Way Clutch
One Clutch
AS30 = NSS30


AS30 is a one-way clutch,that is used for Overrunning, Indexing and Backstopping, this type is non-bearing supported, this is exactly the same size as any 6206 ball bearing, you will need one of the 6206 beairngs to support it, One way Bearing Sprag/Clutch Freewheel and also called as Backstops. AS30 is used in any application that requires one direction rotation, such as mining, hydraulic, textile, printing and washing machines, conveyor systems that carry products to a higher level should not be reversed because of gravity during any power shortage.
  • AS30 Clutch
  • One Way Clutch
  • Applications: Overrunning, Indexing, Backstopping
  • Dimensions: 30mm x 62mm x 16mm (Metric)
  • Inner Diameter: 30mm
  • Outer Diameter: 62mm
  • Width: 16mm
  • Torque: 72 TKN
  • Max Torque: 180 TKN
  • Inner Race Overrun: 1,600 RPM
  • Outer Race Overrun: 2,400 RPM
  • Quantity: One Clutch

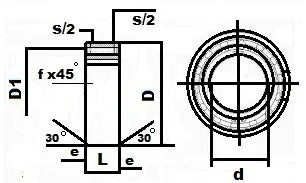

Dimension (mm)
d D D1 L s e f
30 62 55 16 2.4 0.8 1
