7217C P5 High Precision Angular Contact Bearing 85x150x28 ABEC-5

7217C P5 High Precision Angular Contact Bearing 85x150x28 ABEC-5

$89.99 USD
$99.99 USD $89.99 USD
Promotion Épuisé
Frais d'expédition calculés à l'étape de paiement.
High Precision Ball Bearing
7217C P5 Angular Ball Bearing
15 Degrees Contact Angle
ABEC-5
85mm x 150mm x 28mm


. .

7217C P5 high precision Angular Ball Bearing with 15 degrees contact angle. Bearing is ABEC-5 (P5) quality. 7217C P5 has an inner diameter of 85mm, outer diameter 150mm, and width 28mm.

  • 7217C P5 Ball Bearing
  • High precision Angular Ball Bearing
  • Cage: PA66+ 30% NTE264B
  • Quality: ABEC-5 (P5 quality)
  • Dimensions: 85mm x 150mm x 28mm/Metric
  • ID (inner diameter)/Bore: 85mm
  • OD (outer diameter): 150mm
  • Width: 28mm
  • Size: 85 x 150 x 28 mm
  • Quantity: 1 Bearing
  • Dynamic load rating Cr: 97,400 N
  • Static load rating Cor: 107,500 N
  • Limiting Speed:
    • Grease Lubrication: 9,000 RPM
    • Oil Lubrication: 14,000 RPM

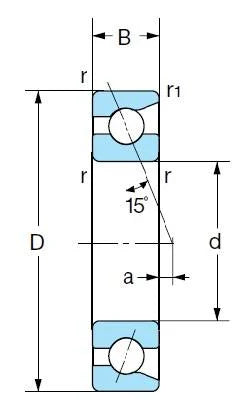

Dimensions
d D B
85mm 150mm 28mm


💡 What Does ABEC-5 Mean?

ABEC-5 is a precision rating from the Annular Bearing Engineers’ Committee (ABEC), indicating that the bearing is manufactured with tighter tolerances for improved accuracy and performance.

Bearings rated ABEC-5 are designed for high-speed, low-friction operation, making them ideal for electric motors, precision tools, 3D printers, and performance equipment where smooth rotation and long service life are essential.
