• 7212CYP5 Nachi Angular Contact Bearing 60x110x22:ABEC-5:Japan
  • 7212CYP5 Nachi Angular Contact Bearing 60x110x22:ABEC-5:Japan
1 2

Nachi

7212CYP5 Nachi Angular Contact Bearing 60x110x22:ABEC-5:Japan

7212CYP5 Nachi Angular Contact Bearing 60x110x22:ABEC-5:Japan

$299.69 USD
$332.99 USD $299.69 USD
Promotion Épuisé
Frais d'expédition calculés à l'étape de paiement.

Nachi Angular Ball Bearings
7212CYP5
60mm x 110mm x 22mm
15 Contact Angle
Polyamide resin cage
Abec-5
Made in Japan

7212CYP5 Nachi Angular Ball Bearings, 15 Contact Angle, Polyamide resin cage, Abec-5 Made in Japan, here are the dimensions of the 7212CYP5, the 7212CYP5 inner diameter is 60mm, the 7212CYP5 outer diameter is 110mm, 7212CYP5 width is 22mm.

  • 7212CYP5 Angular Ball Bearings
  • Dimensions: 60*110*22 mm/Metric
  • ID (inner diameter)/Bore=60mm
  • OD (outer diameter D1)=110mm
  • Width/Height/thickness=22mm
  • 7212CYP5 Nachi Angular Ball Bearings
  • Cage: Polyamide resin cage
  • Quality: ABEC-5
  • Basic Dynamic Load Cr (KN): 64.5
  • Size: 60mm x 110mm x 22mm
  • Made in Japan
  • Quantity: 1 Bearing 7212CYP5

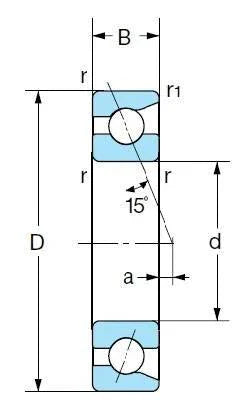

d D B r r1 Basic Dynamic Load
60mm 110mm 22mm 1.5 1 64.5


💡 What Does ABEC-5 Mean?

ABEC-5 is a precision rating from the Annular Bearing Engineers’ Committee (ABEC), indicating that the bearing is manufactured with tighter tolerances for improved accuracy and performance.

Bearings rated ABEC-5 are designed for high-speed, low-friction operation, making them ideal for electric motors, precision tools, 3D printers, and performance equipment where smooth rotation and long service life are essential.
