7207C P5 Quality Angular Contact Bearing 35x72x17 ABEC-5

7207C P5 Quality Angular Contact Bearing 35x72x17 ABEC-5

$44.99 USD
$49.99 USD $44.99 USD
Promotion Épuisé
Frais d'expédition calculés à l'étape de paiement.
High Precision Ball Bearing
7207C P5 High Precision Angular Ball Bearing
15 degrees Contact Angle
ABEC-5
35mm x 72mm x 17mm

7207C P5 high precision Angular Ball Bearing with 15 degrees contact angle and PA66 + 30% NTE264B cage, bearing is ABEC 5 (P5) quality and made in Japan, inner diameter is 35mm, outer diameter is 72mm and width is 17mm.

  • 7207C P5 Ball Bearing
  • High Precision Angular Ball Bearing
  • Cage: PA66 + 30% NTE264B cage
  • Quality: ABEC-5 (P5 quality)
  • Dimensions: 35mm x 72mm x 17mm/Metric
  • ID (inner diameter)/Bore: 35mm
  • OD (outer diameter): 72mm
  • Width: 17mm
  • Size: 35 x 72 x 17 mm
  • Quantity: 1 Bearing
  • Basic Dynamic Load Cr: 25,800 N
  • Basic Static LoadCor: 22,900 N
  • Limiting Speed:
    • Grease Lubrication: 15,000 RPM
    • Oil Lubrication: 21,000 RPM

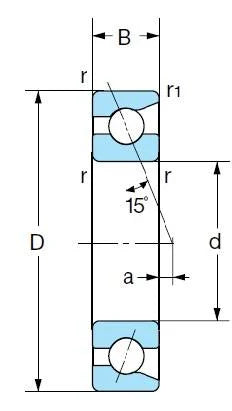

Dimensions
d D B r r1
35mm 72mm 17mm 1.1mm 0.6mm


💡 What Does ABEC-5 Mean?

ABEC-5 is a precision rating from the Annular Bearing Engineers’ Committee (ABEC), indicating that the bearing is manufactured with tighter tolerances for improved accuracy and performance.

Bearings rated ABEC-5 are designed for high-speed, low-friction operation, making them ideal for electric motors, precision tools, 3D printers, and performance equipment where smooth rotation and long service life are essential.
