7009C P5 Quality Angular Contact Bearing 45x75x16mm ABEC-5 Bearing

7009C P5 Quality Angular Contact Bearing 45x75x16mm ABEC-5 Bearing

$79.99 USD
$88.88 USD $79.99 USD
Promotion Épuisé
Frais d'expédition calculés à l'étape de paiement.
High Precision Ball Bearing
7009C P5 Angular Ball Bearing
15 degrees Contact Angle
ABEC-5
45mm x 75mm x 16mm


7009C P5 high precision Angular Ball Bearing with 15 degrees contact angle, bearing is ABEC 5 (P5) quality. 7009C P5 inner diameter is 45mm, 7009C P5 outer diameter is 75mm, 7009C P5 width is 16mm.

  • 7009C P5 Ball Bearing
  • Angular Ball Bearing
  • Cage: PA66 + 30% NTE264B
  • Quality: ABEC-5 (P5 quality)
  • Dimensions: 45mm x 75mm x 16mm/Metric
  • ID (inner diameter)/Bore: 45mmOD (outer diameter): 75mm
  • Width: 16mm
  • Size: 45 x 75 x 16 mm
  • Quantity: 1 Bearing
  • Dynamic load rating Cr: 24,600 N
  • Static load rating Cor: 19,400 N
  • Limiting Speed:
    • Grease Lubrication: 13,000 RPM
    • Oil Lubrication: 18,000 RPM

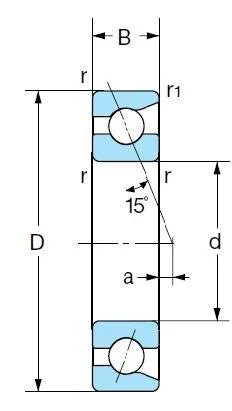

Dimensions
d D B r r1 a
45mm 75mm 16mm 1mm 0.6mm -1.1mm

7009C-P5 Single Row Angular Contact Bearing

7009C-P5


💡 What Does ABEC-5 Mean?

ABEC-5 is a precision rating from the Annular Bearing Engineers’ Committee (ABEC), indicating that the bearing is manufactured with tighter tolerances for improved accuracy and performance.

Bearings rated ABEC-5 are designed for high-speed, low-friction operation, making them ideal for electric motors, precision tools, 3D printers, and performance equipment where smooth rotation and long service life are essential.
