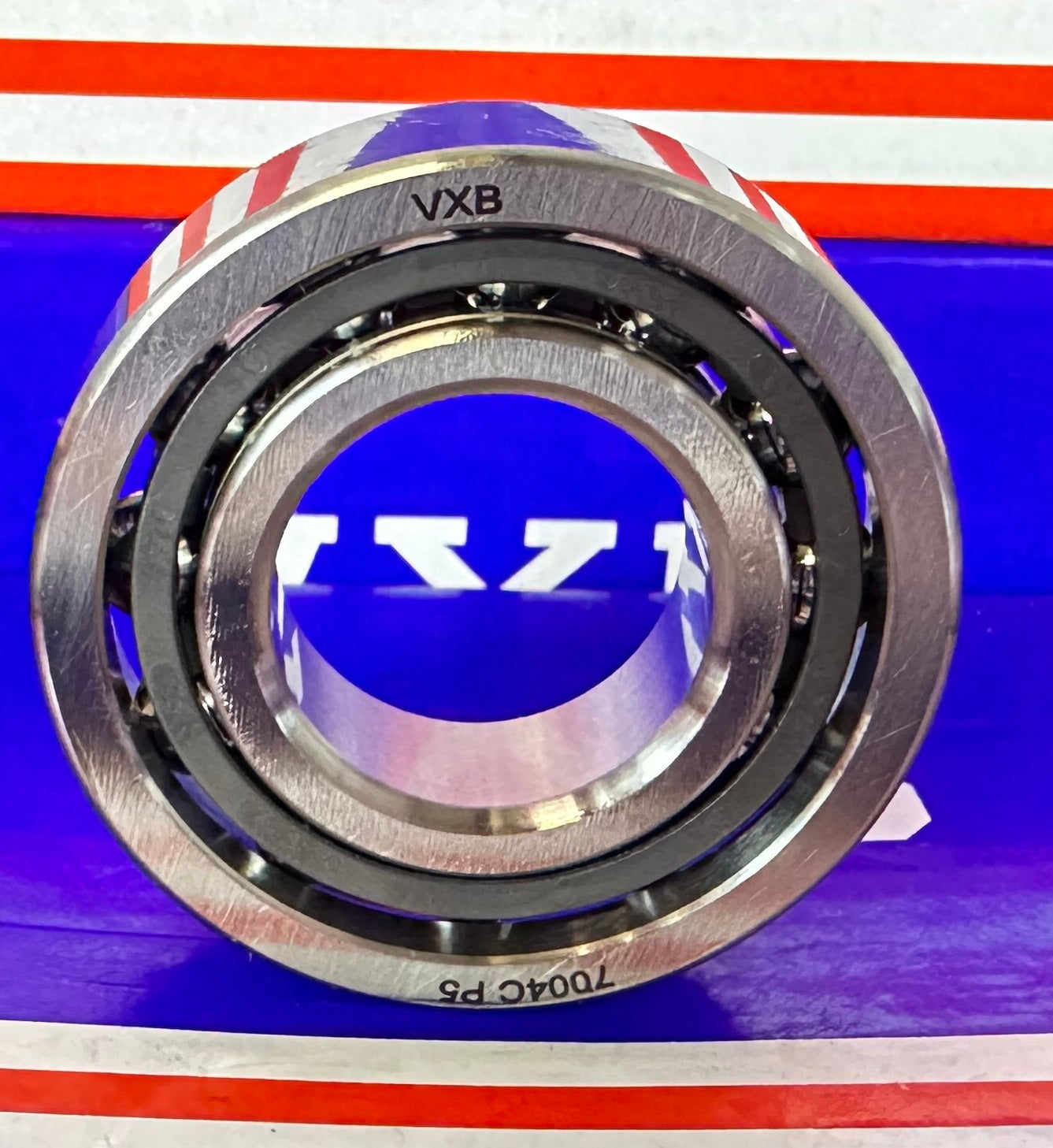

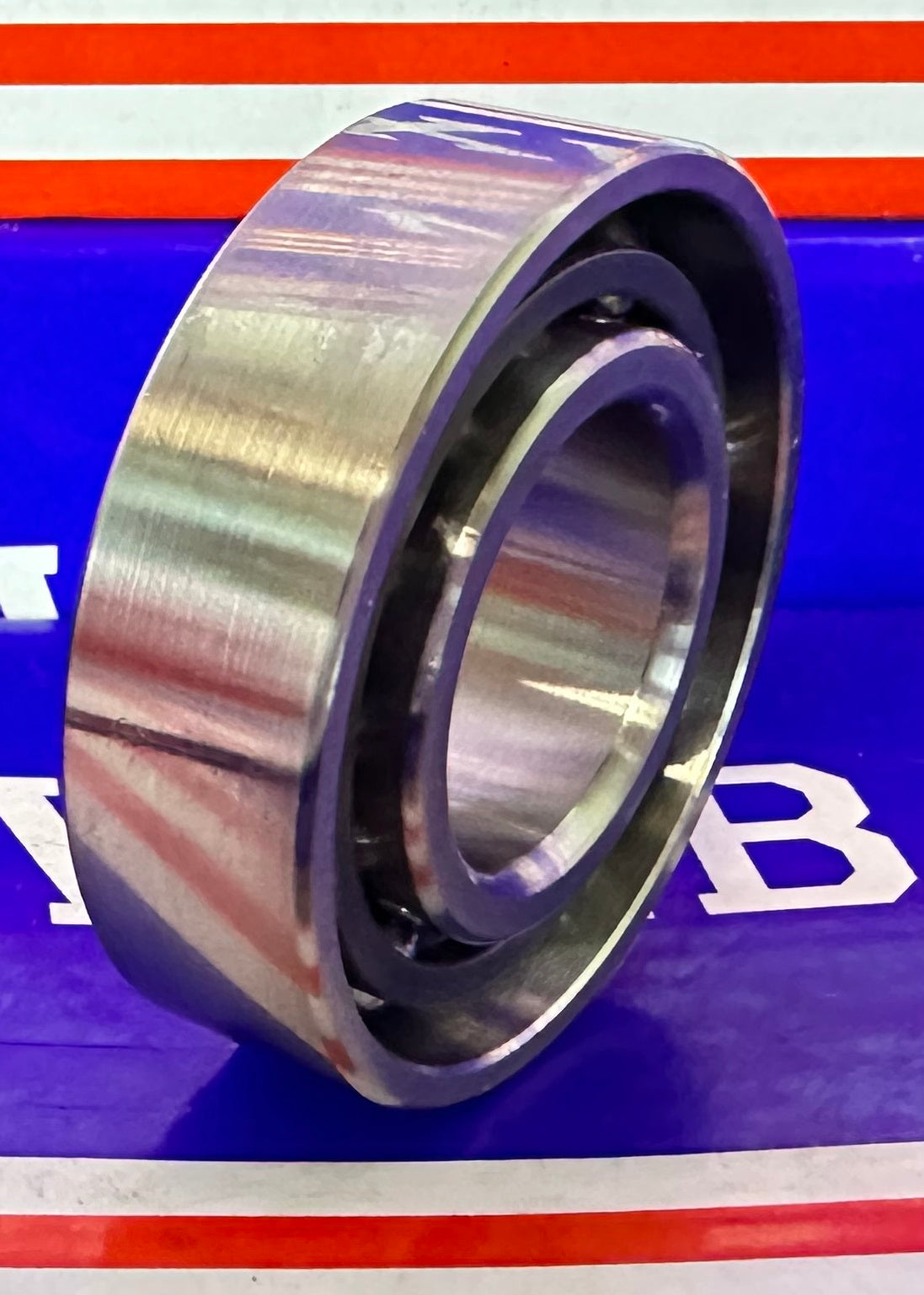

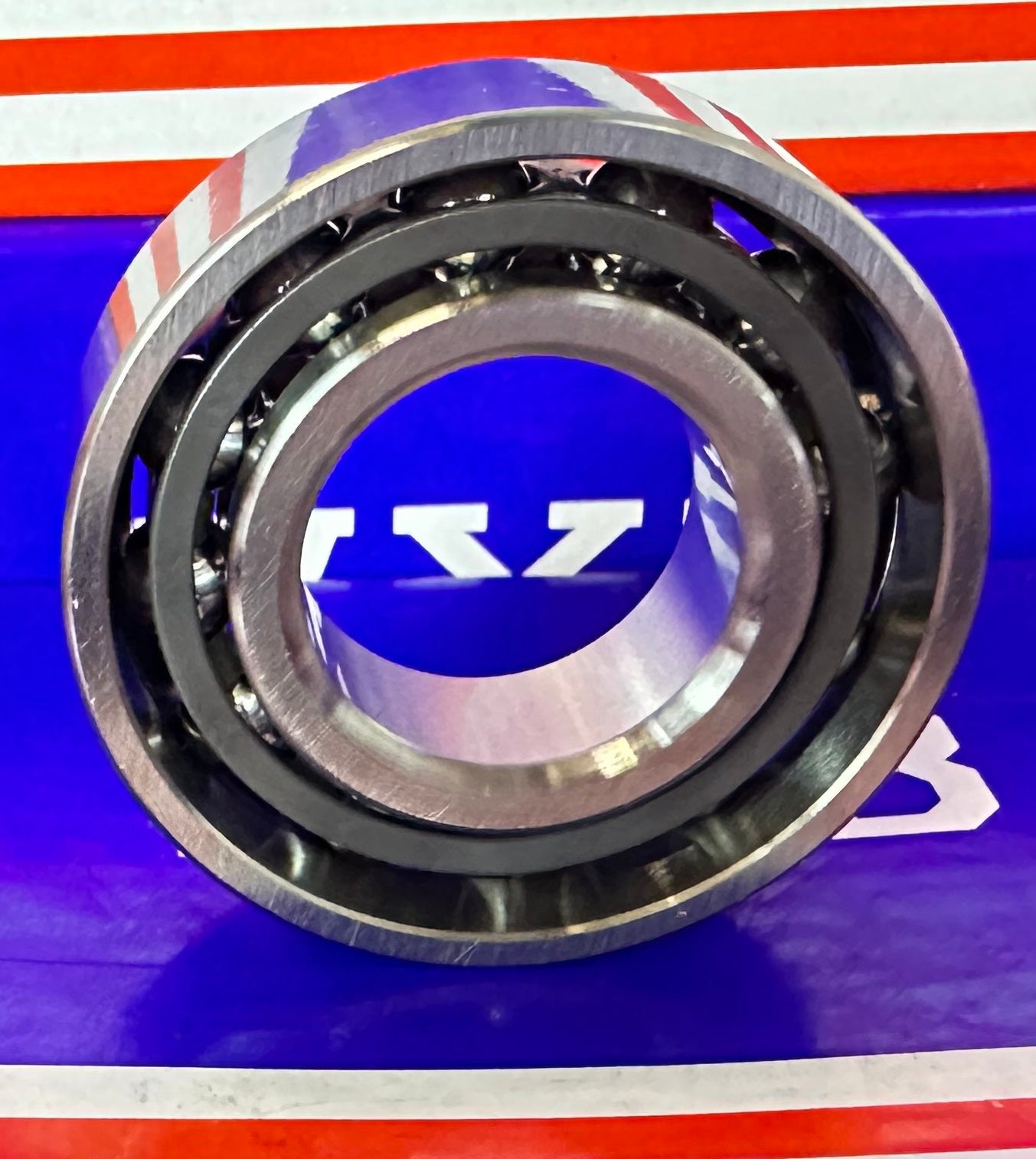

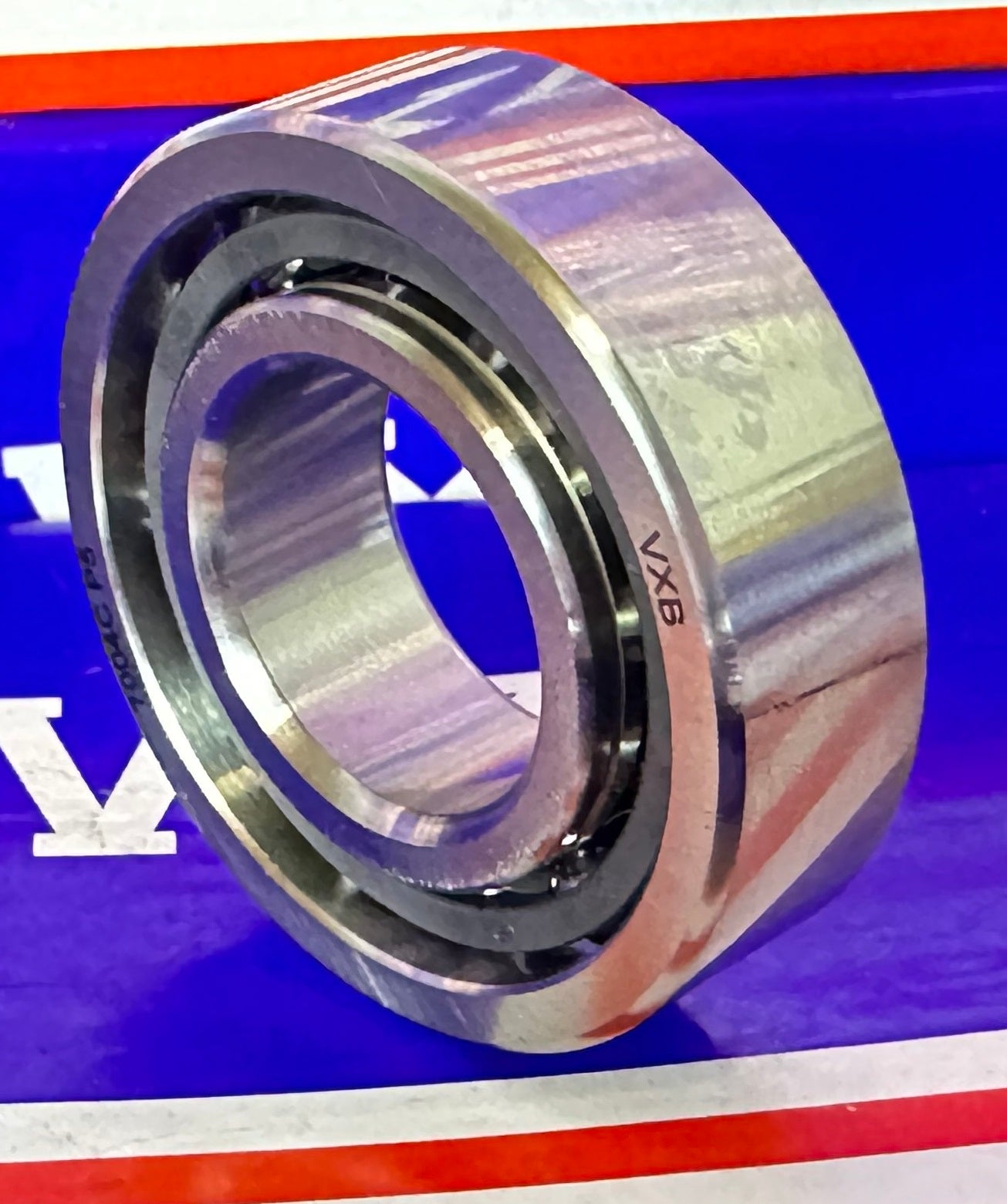

7004C P5 High precision Angular Contact Bearing ABEC-5 20x42x12mm

7004C P5 High precision Angular Contact Bearing ABEC-5 20x42x12mm

$35.99 USD
$39.99 USD $35.99 USD
Promotion Épuisé
Frais d'expédition calculés à l'étape de paiement.
High Precision Ball Bearing
7004C P5 Angular Ball Bearing
15 degrees Contact Angle
ABEC-5
20mm x 42mm x 12mm


. .

7004C P5 high precision Angular Ball Bearing with 15 degrees contact angle. Bearing is ABEC-5 (P5) quality. 7002C P5 inner diameter is 20mm, outer diameter is 42mm, and width is 12mm.

  • 7004C P5 Ball Bearing
  • High precision Angular Ball Bearing
  • Cage: PA66+ 30% NTE264B
  • Quality: ABEC-5 (P5 quality)
  • Dimensions: 20mm x 42mm x 12mm/Metric
  • ID (inner diameter)/Bore: 20mm
  • OD (outer diameter): 42mm
  • Width: 12mm
  • Size: 20 x 42 x 12 mm
  • Quantity: 1 Bearing
  • Dynamic load rating Cr: 5,300 N
  • Static load rating Cor: 3,300 N
  • Limiting Speed:
    • Grease Lubrication: 5,000 RPM
    • Oil Lubrication: 7,500 RPM

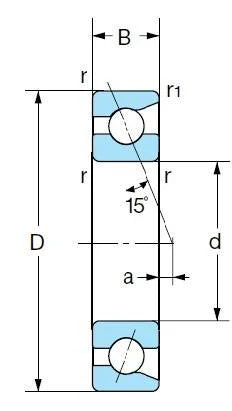

Dimensions
d D B
20mm 42mm 12mm


💡 What Does ABEC-5 Mean?

ABEC-5 is a precision rating from the Annular Bearing Engineers’ Committee (ABEC), indicating that the bearing is manufactured with tighter tolerances for improved accuracy and performance.

Bearings rated ABEC-5 are designed for high-speed, low-friction operation, making them ideal for electric motors, precision tools, 3D printers, and performance equipment where smooth rotation and long service life are essential.
