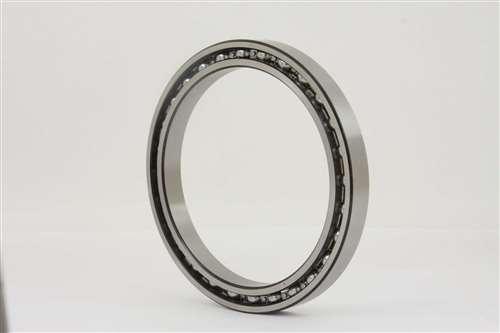

6824 Thin Section Metric Ball Bearing 120x150x16mm Open Large

6824 Open Ball Bearing - ABEC 1 Steel Radial
✔️ 120mm x 150mm x 16mm - Open Design, Oil Preserved, Deep Groove

The 6824 open-style deep groove ball bearing is built for stable radial load handling in large mechanical systems. With an ABEC 1 precision rating and steel construction, this bearing features a 16mm slim profile and is preserved with oil for reliable long-term storage. Perfect for industrial machinery, spindles, and automated equipment where low rolling resistance and wide inner diameter are key.

💡 Shipping Lead Time: Ships in 2-3 weeks

✅ Size: 120mm ID x 150mm OD x 16mm width
✅ Type: Deep groove radial ball bearing
✅ Material: Steel
✅ Cage: Steel
✅ Closures: Open (non-sealed)
✅ Quality: ABEC 1
✅ Lubrication: Oil preservative
✅ Dynamic Load Rating: 28,300 N
✅ Static Load Rating: 31,500 N
✅ Max Speed (Grease): 4,000 RPM
✅ Max Speed (Oil): 4,800 RPM
✅ Quantity: 1 Bearing

💡 Why choose open-style deep groove bearings?
Open bearings minimize friction and allow for maximum speed when used in clean, lubricated environments - perfect for spindles, gearboxes, and industrial rotary systems.
