Nachi

6309ZZE Nachi Bearing Shielded C3 Japan 45x100x25mm

6309ZZE Nachi Bearing Shielded C3 Japan 45x100x25mm

$47.54 USD
$52.82 USD $47.54 USD
Promotion Épuisé
Frais d'expédition calculés à l'étape de paiement.
6309ZZE Nachi Bearing
45mm x 100mm x 25mm
Made in Japan

6309ZZE Nachi Bearing, Made in Japan, here are the dimensions of the 6309ZZE, the 6309ZZE inner diameter is 45mm, the 6309ZZE outer diameter is 100mm, 6309ZZE width is 25mm.

  • Nachi Double Shielded Ball Bearings
  • Nachi Deep groove Ball Bearings
  • Radial Clearance: C3
  • Closures: Double metal shields (Z/ZZ/2Z) for protection against dust and debris
  • Dimensions: 45mm x 100mm x 25mm /Metric
  • ID (inner diameter)/Bore=45mm
  • OD (outer diameter D1)=100mm
  • Width/Height/thickness=25mm
  • Size: 45mm x 100mm x 25mm
  • Quantity: 1 Bearing
  • Dynamic load rating Cr: 53,000 N
  • Static load rating Cor: 32,000 N
  • Limiting Speed:
    • Grease Lubrication: 7,000 RPM
  • Equal: 6309 ZZ / 6309 2Z
  • Made in Japan

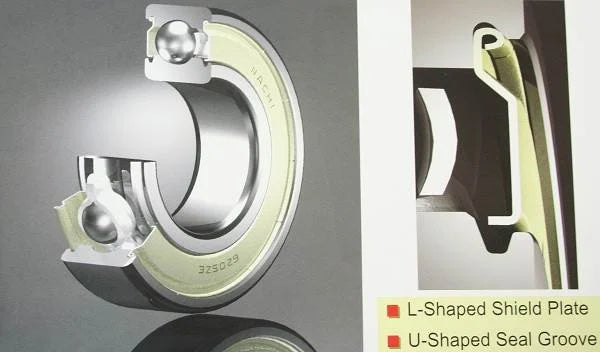

Advanced Shield Design Provides
Superior Protection and Quiet Operation
The shield design was optimized using dynamic analysis modeling techniques.The design profile and plate thickness provides rigidity that helps quiet operation as well asretain grease and protect against intrusion of major contamination.

  • Superior in Sealing Out Contamination
  • Superb Grease Retention
  • Quiet Operation
    The Best Components Yield the Greatest Bearing Performance
    Rings and balls made from select material have superbly controlled accuracy such as roundness, contour,surface finish, and hardness to provide quieter operation, reduced vibration levels, and long life.Rivet-type pressed steel cages for strength and durability.High-performance grease for long life and low noise.
