Nachi

6222ZZE Nachi Bearing Shielded C3 Japan 110x200x38 Large

6222ZZE Nachi Bearing Shielded C3 Japan 110x200x38 Large

$351.00 USD
$390.00 USD $351.00 USD
Promotion Épuisé
Frais d'expédition calculés à l'étape de paiement.

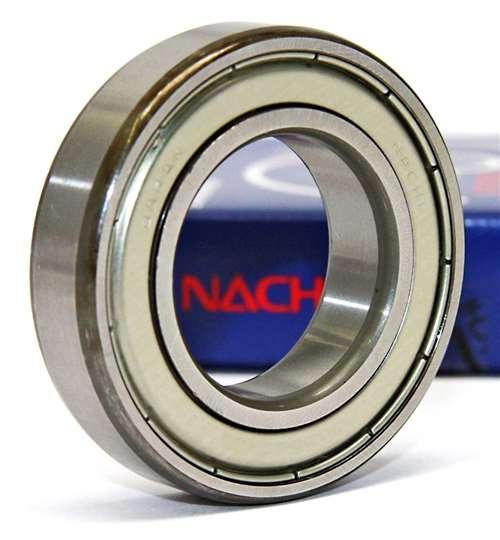

6222ZZE Nachi Bearing
110mm x 200mm x 38mm
Made in Japan

6222ZZE Nachi Bearing, the 6222ZZE inner diameter is 110mm, the 6222ZZE outer diameter is 200mm, 6222ZZE width is 38mm.

  • 6222ZZE Nachi Ball Bearing
  • Nachi Deep groove Ball Bearing
  • Closures: Double metal shields (Z/ZZ/2Z) for protection against dust and debris
  • Radial Clearance: C3
  • ID (inner diameter)/Bore: 110mm
  • OD (outer diameter): 200mm
  • Width: 38mm
  • Quantity: 1 Bearing
  • Dynamic load rating Cr: 144,000 N
  • Static load rating Cor: 117,000 N
    • Grease Lubrication: 3,200 RPM
  • Equivalents: 222KDD, 222SS, 6222.2ZR, 222SFF, 6222-2Z and 6222ZZE

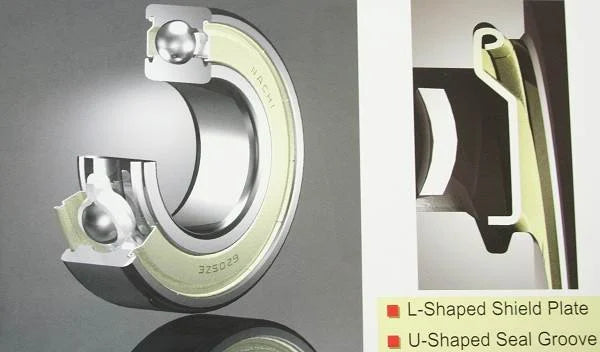

Advanced Shield Design Provides
Superior Protection and Quiet Operation
The shield design was optimized using dynamic analysis modeling techniques.The design profile and plate thickness provides rigidity that helps quiet operation as well asretain grease and protect against intrusion of major contamination.

  • Superior in Sealing Out Contamination
  • Superb Grease Retention
  • Quiet Operation
The Best Components Yield the Greatest Bearing Performance
Rings and balls made from select material have superbly controlled accuracy such as roundness, contour,surface finish, and hardness to provide quieter operation, reduced vibration levels, and long life.Rivet-type pressed steel cages for strength and durability.High-performance grease for long life and low noise.
