Nachi

6221ZZC3BXMS Nachi Bearing Shielded C3 Japan 105x190x36

6221ZZC3BXMS Nachi Bearing Shielded C3 Japan 105x190x36

$410.40 USD
$456.00 USD $410.40 USD
Promotion Épuisé
Frais d'expédition calculés à l'étape de paiement.
6221ZZC3BXMS Nachi Bearing
105mm x 190mm x 36mm
Made in Japan

6221ZZC3BXMS Nachi Bearing, the 6221ZZC3BXMS inner diameter is 105mm, the 6221ZZC3BXMS outer diameter is 190mm, 6221ZZC3BXMS width is 36mm.

  • 6221ZZC3BXMS Nachi Ball Bearing
  • Nachi Deep groove Ball Bearing
  • Closures: Double metal shields (Z/ZZ/2Z) for protection against dust and debris
  • Radial Clearance: C3
    • Dimensions: 105mm x 190mm x 36mm/Metric
  • ID (inner diameter)/Bore: 105mm
  • OD (outer diameter): 190mm
  • Width: 36mm
  • Size: 105 x 190 x 36 mm
  • Quantity: 1 Bearing
  • Dynamic load rating Cr: 43,500 N
  • Static load rating Cor: 29,300 N
  • Limiting Speed:
    • Grease Lubrication: 6,400 RPM
  • Made in Japan

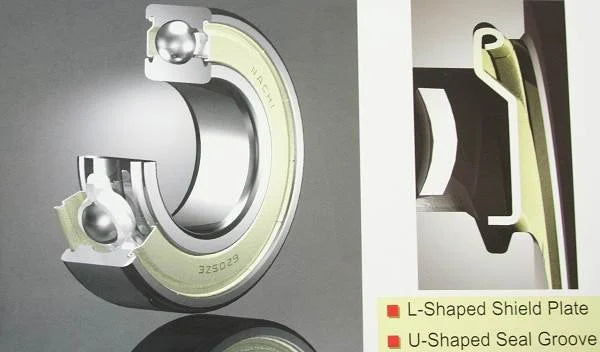

Advanced Shield Design Provides
Superior Protection and Quiet Operation
The shield design was optimized using dynamic analysis modeling techniques.The design profile and plate thickness provides rigidity that helps quiet operation as well asretain grease and protect against intrusion of major contamination.

  • Superior in Sealing Out Contamination
  • Superb Grease Retention
  • Quiet Operation
    The Best Components Yield the Greatest Bearing Performance
    Rings and balls made from select material have superbly controlled accuracy such as roundness, contour,surface finish, and hardness to provide quieter operation, reduced vibration levels, and long life.Rivet-type pressed steel cages for strength and durability.High-performance grease for long life and low noise.
