Nachi

6208ZZE Nachi Bearing 40x80x18 Shielded C3 Japan

6208ZZE Nachi Bearing 40x80x18 Shielded C3 Japan

$35.99 USD
$39.99 USD $35.99 USD
Promotion Épuisé
Frais d'expédition calculés à l'étape de paiement.
6208ZZE Nachi Bearing
40mm x 80mm x 18mm
Made in Japan

6208ZZE Nachi Bearing, the 6208ZZE inner diameter is 40mm, the 6208ZZE outer diameter is 80mm, 6208ZZE width is 18mm.

  • 6208ZZE Nachi Ball Bearing
  • Nachi Deep groove Ball Bearing
  • Closures: Double metal shields (Z/ZZ/2Z) for protection against dust and debris
  • Radial Clearance: C3
  • Dimensions: 40mm x 80mm x 18mm/Metric
  • ID (inner diameter)/Bore: 40mm
  • OD (outer diameter): 80mm
  • Width: 18mm
  • Size: 40 x 80 x 18 mm
  • Quantity: 1 Bearing
  • Dynamic load rating Cr: 29,100 N
  • Static load rating Cor: 17,900 N
  • Limiting Speed:
    • Grease Lubrication: 8,700 RPM
  • Equivalents: 208KDD, 208SS, 6208.2ZR, 208SFF, 6208-2Z and 6208ZZE
  • Made in Japan

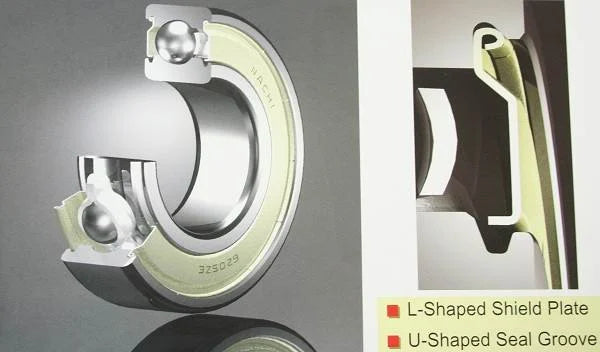

Advanced Shield Design Provides
Superior Protection and Quiet Operation
The shield design was optimized using dynamic analysis modeling techniques.The design profile and plate thickness provides rigidity that helps quiet operation as well asretain grease and protect against intrusion of major contamination.

  • Superior in Sealing Out Contamination
  • Superb Grease Retention
  • Quiet Operation
    The Best Components Yield the Greatest Bearing Performance
    Rings and balls made from select material have superbly controlled accuracy such as roundness, contour,surface finish, and hardness to provide quieter operation, reduced vibration levels, and long life.Rivet-type pressed steel cages for strength and durability.High-performance grease for long life and low noise.
