Nachi

6032ZZE Nachi Bearing Shielded C3 Japan 160x240x38 Large Bearing

6032ZZE Nachi Bearing Shielded C3 Japan 160x240x38 Large Bearing

$918.00 USD
$1,020.00 USD $918.00 USD
Promotion Épuisé
Frais d'expédition calculés à l'étape de paiement.
6032ZZE Nachi Bearing
One Bearing
Made in Japan

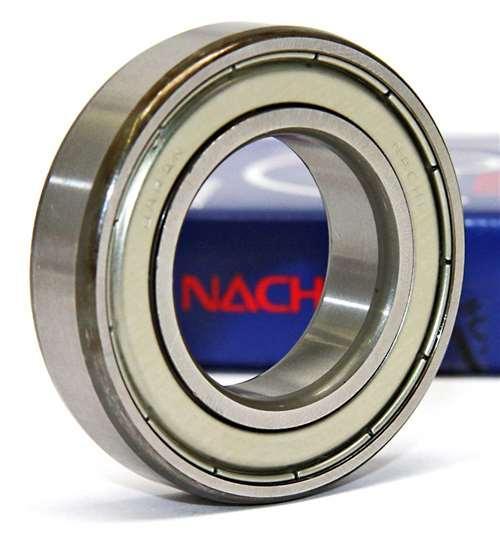

6032ZZE Nachi Bearing, the 6032ZZE inner diameter is 160mm, the 6032ZZE outer diameter is 240mm, 6032ZZE width is 38mm.

  • 6032ZZE Nachi Ball Bearing
  • Nachi Deep groove Ball Bearing
  • Closures: Double metal shields (Z/ZZ/2Z) for protection against dust and debris
  • Radial Clearance: C3
  • Dimensions: 160mm x 240mm x 38mm/Metric
  • ID (inner diameter)/Bore: 160mm
  • OD (outer diameter): 240mm
  • Width: 38mm
  • Size: 160 x 240 x 38 mm
  • Quantity: 1 Bearing
  • Dynamic load rating Cr: 137000 N
  • Static load rating Cor: 135000 N
  • Limiting Speed:
    • Grease Lubrication: 2600 RPM
  • Equal: 6032 ZZ / 6032 2Z
  • Made in Japan

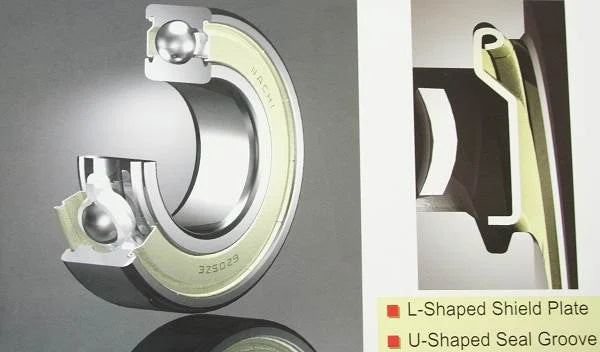

Advanced Shield Design Provides
Superior Protection and Quiet Operation
The shield design was optimized using dynamic analysis modeling techniques.The design profile and plate thickness provides rigidity that helps quiet operation as well asretain grease and protect against intrusion of major contamination.

  • Superior in Sealing Out Contamination
  • Superb Grease Retention
  • Quiet Operation
    The Best Components Yield the Greatest Bearing Performance
    Rings and balls made from select material have superbly controlled accuracy such as roundness, contour,surface finish, and hardness to provide quieter operation, reduced vibration levels, and long life.Rivet-type pressed steel cages for strength and durability.High-performance grease for long life and low noise.
