Nachi

5309ZZ Nachi Angular Contact Bearing - Double Row - 45x100x39.7 Bearing

5309ZZ Nachi Angular Contact Bearing - Double Row - 45x100x39.7 Bearing

$152.05 USD
$168.94 USD $152.05 USD
Promotion Épuisé
Frais d'expédition calculés à l'étape de paiement.

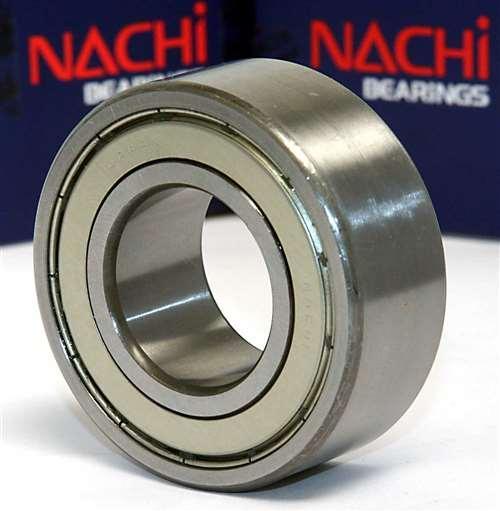

5309ZZ Nachi Double Row Angular Ball Bearing
Double Shielded
45mm x 100mm x 39.7mm
Made in Japan

5309ZZ Nachi Double Row Angular Ball Bearing, bearing is Double Shielded, Made in Japan, inner diameter is 45mm, outer diameter is 100mm and width is 39.7mm.

  • 5309ZZ Nachi Ball Bearing
  • Nachi Double Row Angular Ball Bearing
  • Closures: Double Shielded
  • Dimensions: 45mm x 100mm x 39.7mm/Metric
  • ID (inner diameter)/Bore: 45mm
  • OD (outer diameter): 100mm
  • Width: 39.7mm
  • Size: 45 x 100 x 39.7 mm
  • Quantity: 1 Bearing
  • Dynamic load rating Cr: 76,500 N
  • Static load rating Cor: 56,500 N
  • Limiting Speed:
    • Grease Lubrication: 5,000 RPM
  • Made in Japan

The construction of this type ball bearing is similar to the adjacent, BACK-TO-BACK mounting of two Single-row Angular Contact ball bearings. Because fewer balls can be inserted per row compared to Single-row Angular Contact ball bearings, a Double-row Angular Contact ball bearing will have less load capacity than an equivalent size/series BACK-TO-BACK set of two Single-row Angular Contact ball bearings. This bearing type can sustain radial, moment and bi-directional axial loads.
