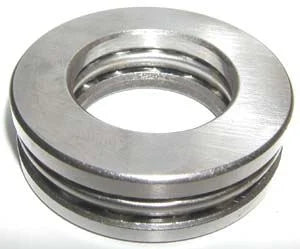

51109 Thrust Bearing 45x65x14mm

51109 Thrust Ball Bearing – Chrome Steel
✔️ 45mm x 65mm x 14mm – High Axial Load – Grease or Oil Lube

The 51109 is a thrust ball bearing designed to support high axial (vertical) loads with minimal friction. Constructed from durable 52100 chrome steel, it’s ideal for vertical shafts, machine tools, and precision axial support in industrial systems.

✅ Inner diameter (ID): 45mm
✅ Outer diameter (OD): 65mm
✅ Width: 14mm
✅ Type: Thrust ball bearing
✅ Material: 52100 Chrome Steel
✅ Dynamic load rating (Ca): 27,800 N
✅ Static load rating (Coa): 69,000 N
✅ Max speed with grease: 3,300 RPM
✅ Max speed with oil: 4,900 RPM
✅ Quantity: 1 bearing

💡 When should you use a thrust bearing instead of a radial bearing?
Thrust bearings are specifically designed to handle loads parallel to the shaft (axial), not radial loads. They’re the go-to choice for applications like turntables, vertical drives, and screw jacks where axial stability is critical.

For high axial loads with smooth rotation, this bearing gets it done - add it to your build and keep things turning with confidence!
