4 Female Rod End Heim Joints 16mm PHS16 - 2 RH + 2 LH Hand

4 Female Rod End Heim Joints 16mm PHS16 - 2 RH + 2 LH Hand

$53.98 USD
$39.99 USD $53.98 USD
Promotion Épuisé
Frais d'expédition calculés à l'étape de paiement.
4 Female Rod Ends PHS-16
2 Right Hand and 2 Left Hand


4 Female Rod Ends PHS16, 2 right hand and 2 left hand Work with 16 mm Shafts (5/8" inch), measures an inner diameter of 16mm and the internal thread size is M16x2, Here is the interchange designation in every brand:
  • PHS16 Bearings
  • Rod Ends Heim Joints Bearing
  • Dynamic Load Rating: 2,140 KGF
  • Static Load Rating: 2,590 KGF
  • Quantity: Four Bearings
  • IKO: PHS 16
  • ELGES: GIKFR 16 PB
  • Equal: SIKAC 16 M
  • HIRSCHMANN: SF 16

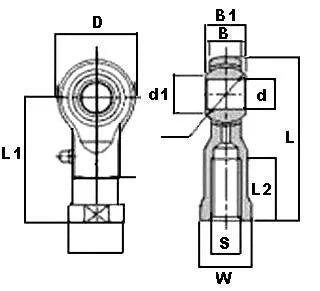

Dimensions (mm)
d Thread
S		 D B B1 d1 L L1 L2 W
16 M16x2 38 15 21 19.4 83 64 33 22
