4 Female Rod End Heim Joints 14mm PHS14 - 2 RH + 2 LH Hand

4 Female Rod End Heim Joints 14mm PHS14 - 2 RH + 2 LH Hand

$40.48 USD
$29.99 USD $40.48 USD
Promotion Épuisé
Frais d'expédition calculés à l'étape de paiement.
4 Female Rod Ends PHS14
2 Right Hand and 2 Left Hand


4 Female Rod Ends PHS14, 2 right hand and 2 left hand Work with 14 mm Shafts (0.55" inch), measures an inner diameter of 14 mm and the internal thread size is M14x2, Here is the interchange designation in every brand:
  • PHS14 Bearings
  • Rod Ends Heim Joints Bearing
  • Dynamic Load Rating: 1710 KGF
  • Quantity: Four Bearings
  • Static Load Rating: 2130 KGF
  • HIRSCHMANN: SF 14
  • ELGES: GIKFR 14 PB
  • Equal: SIKAC 14 M
  • IKO: PHS 14

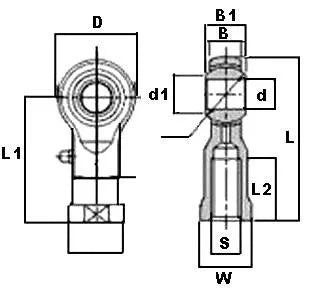

Dimensions (mm)
d Thread
S		 D B B1 d1 L L1 L2 W
14 M14x2 34 13.5 19 16.9 74 57 27 22
