VXB

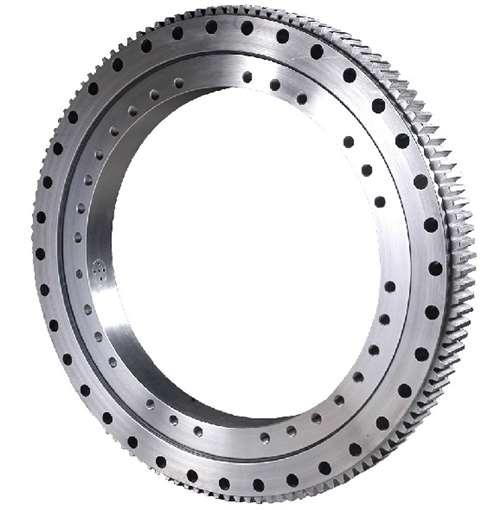

35 Inch Four-Point Contact 878x1185.6x100mm Ball Slewing Ring Bearing - Outside Gear
35 Inch Four-Point Contact 878x1185.6x100mm Ball Slewing Ring Bearing - Outside Gear
Prix habituel
$11,425.03 USD
Prix habituel
$8,462.99 USD
Prix promotionnel
$11,425.03 USD
Prix unitaire
/
par
Frais d'expédition calculés à l'étape de paiement.
Impossible de charger la disponibilité du service de retrait
35 Inch Four-Point Contact 878x1185.6x100 mm Ball Slewing Ring Bearing with Outside Gear
| Four-Point Contact Ball Slewing Bearing with Outside Gear |
A slewing bearing ring is a rotational rolling-element bearing that typically supports a heavy but slow-turning or slow-oscillating load, often a horizontal platform such as a conventional crane, or the wind-facing platform of a horizontal-axis windmill. (To 'slew' means to turn without change of place.) |
| Outside Dimensions(mm) | Shoulder Dimensions(mm) | Physical Dimensions(mm) | Gear Parameter | Gear Peripheral force | |||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Dp | De | D | d | T | D0 | d0 |
n |
C |
M |
n1 |
d1 | D1 | B | S | b | m |
z |
x |
ha |
Normalizing (KN) | Slack Quench (KN) |
| VXB12401000001 | 1185.6 | 1185.6 | 878 | 100 | 1078 | 922 | 36 | 22 | 20 | 6 | 1001 | 998 | 90 | 10 | 80 | 12 | 96 | 0.5 | 0.9 | 120 | 167 |
