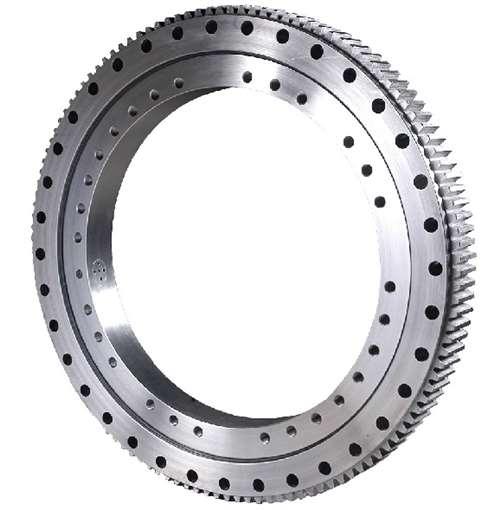

24 Inch Four-Point Contact 608x854.4x80mm Ball Slewing Ring Bearing - Outside Gear
24 Inch Four-Point Contact 608x854.4x80mm Ball Slewing Ring Bearing - Outside Gear
Prix habituel
$3,349.34 USD
Prix habituel
$2,480.99 USD
Prix promotionnel
$3,349.34 USD
Prix unitaire
/
par
Frais d'expédition calculés à l'étape de paiement.
Impossible de charger la disponibilité du service de retrait
24 Inch Four-Point Contact 608x854.4x80 mm Ball Slewing Ring Bearing with Outside Gear
| Four-Point Contact Ball Slewing Bearing with Outside Gear |
A slewing bearing ring is a rotational rolling-element bearing that typically supports a heavy but slow-turning or slow-oscillating load, often a horizontal platform such as a conventional crane, or the wind-facing platform of a horizontal-axis windmill. (To 'slew' means to turn without change of place.) |
| Outside Dimensions(mm) | Shoulder Dimensions(mm) | Physical Dimensions(mm) | Gear Parameter | Gear Peripheral force | |||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Dp | De | D | d | T | D0 | d0 |
n |
C |
M |
n1 |
d1 | D1 | B | S | b | m |
z |
x |
ha |
Normalizing (KN) | Slack Quench (KN) |
| VXB01230710001 | 854.4 | 854.4 | 608 | 80 | 776 | 644 | 24 | 18 | 16 | 4 | 711 | 708 | 70 | 10 | 60 | 8 | 104 | 0.5 | 0.9 | 60 | 83 |
