• 22224MKC3W33 Spherical Roller Bearing 120x215x58
1 1

VXB

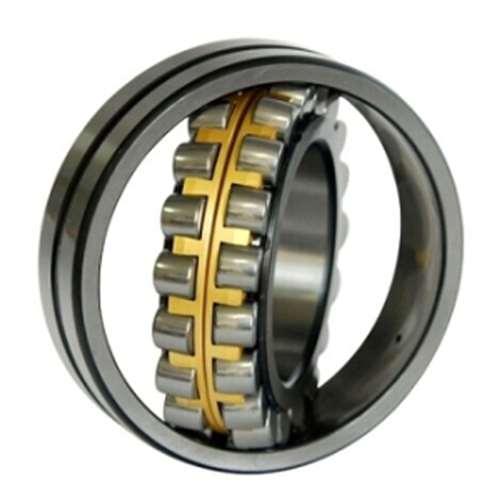

22224MKC3W33 Spherical Roller Bearing 120x215x58

22224MKC3W33 Spherical Roller Bearing 120x215x58

$124.99 USD
$138.88 USD $124.99 USD
Promotion Épuisé
Frais d'expédition calculés à l'étape de paiement.
22224MKC3W33
Spherical Roller Bearing
with Tapered Bore and Bronze Cage

22224MKC3W33 Spherical Roller Bearing, with Tapered Bore and Bronze Cage, the 22224MKC3W33 inner diameter is 120mm, the 22224MKC3W33 outer diameter is 215mm and the 22224MKC3W33 width is 58mm with a C3 clearance.

  • 22224 MKC3W33 Roller Bearing
  • Spherical Roller Bearing with Tapered Bore
  • Cage: Bronze Cage with C3 clearance
  • Dimensions: 120mmx 215mmx 58mm/Metric
  • ID (inner diameter)/Bore: 120mm
  • OD (outer diameter): 215mm
  • Width: 58mm
  • Size: 120x215x58 mm
  • Quantity: 1 Bearing
  • Dynamic load rating Cr: 785,000 N
  • Static load rating Cor: 765,000 N
  • Limiting Speed:
    • Grease Lubrication: 2,400 RPM
    • Oil Lubrication: 3,000 RPM

Spherical Roller Bearings are particularly suitable for applications where misalignment can arise from error in mounting or from shaft deflection. Spherical Roller Bearings are manufactured in a number of design and material configurations depending on the type of application and size of the bearing. Spherical Bearings have two designs, regular spherical roller bearings and spherical roller thrust bearings.
