22220EK/C3 Spherical Roller Bearing - Tapered Bore 100x180x46mm

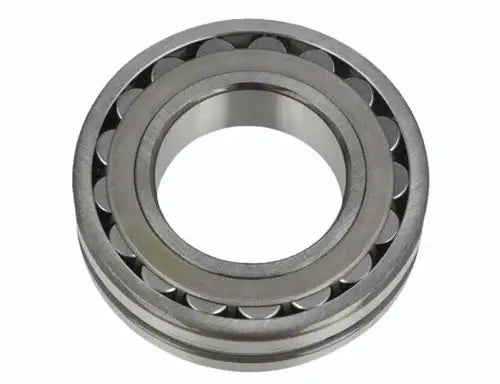

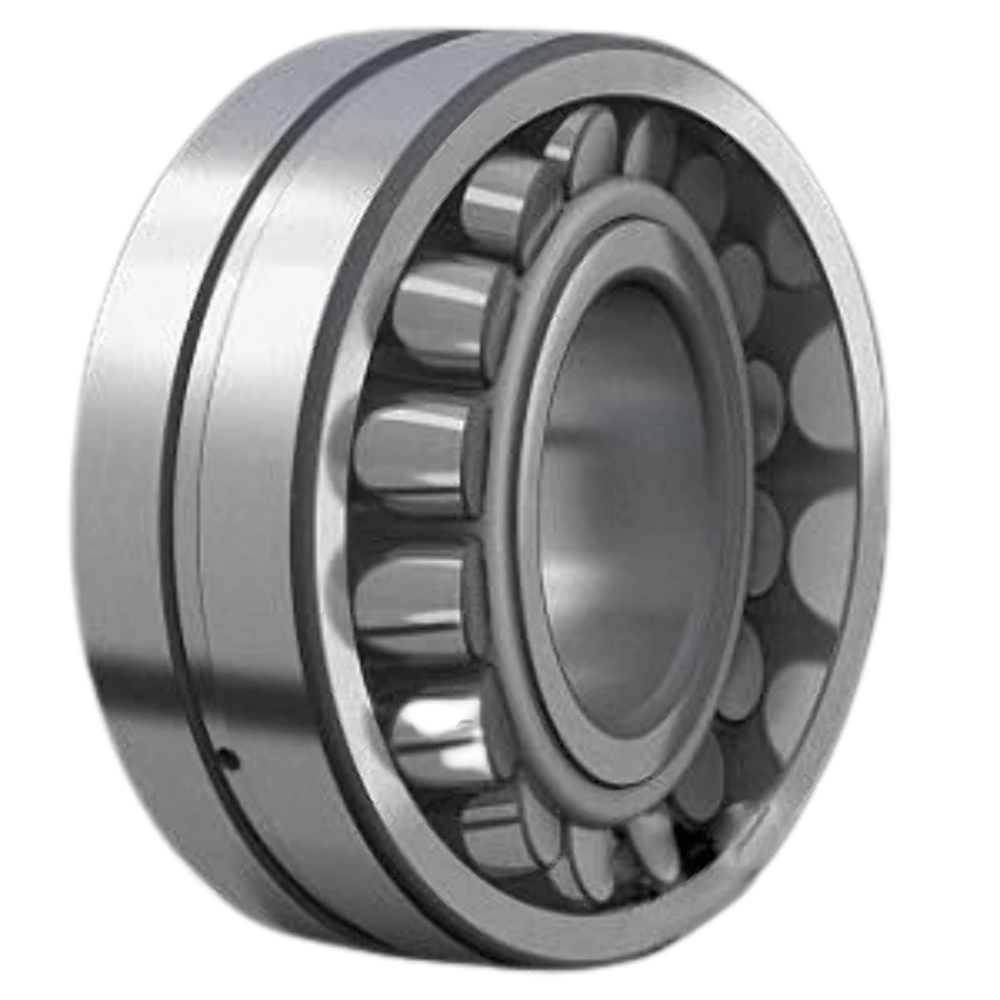

22220EK/C3 Spherical Roller Bearing with Tapered Bore
100mm x 180mm x 46mm - Rugged High-Load Performance - VXB Bearing

The 22220EK/C3 Spherical Roller Bearing is made for serious heavy-duty applications. With a strong chrome steel cage, a 100mm inner diameter, and a tapered bore for easy mounting, this bearing handles both misalignment and high loads with ease. Built to keep machines running smoothly, even under tough conditions.

✅ Item: 22220EK/C3 Spherical Roller Bearing
✅ Type: Spherical Roller Bearing
✅ Bore Type: Tapered Bore
✅ Cage Material: Chrome Steel
✅ Clearance: C3 (Extra internal clearance for thermal and dynamic loads)
✅ Dimensions: 100mm (ID) x 180mm (OD) x 46mm (Width)
✅ Dynamic Load Rating Cr: 520,000 N
✅ Static Load Rating Cor: 480,000 N
✅ Limiting Speed:
• Grease Lubrication: 2,800 RPM
• Oil Lubrication: 3,600 RPM
✅ Brand: VXB Bearing
✅ Quantity: 1 Bearing

💡 Customer Tip - Why use a spherical bearing with a tapered bore?
Answer: Tapered bores make it easier to mount the bearing tightly onto a shaft using an adapter sleeve, ensuring better alignment, stronger grip, and longer bearing life - perfect for dynamic, high-vibration environments!
