20mm Bearing UCF204 Black Oxide Plated Insert + Square Flanged Cast Housing Mounted Bearing

20mm Bearing UCF204 Black Oxide Plated Insert + Square Flanged Cast Housing Mounted Bearing

$48.59 USD
$53.99 USD $48.59 USD
Promotion Épuisé
Frais d'expédition calculés à l'étape de paiement.
UCF204 Black Oxide Plated Insert
20mm Mounted Bearing With Square Flanged Housing
One Bearing

UCF204 Black Oxide Plated Insert Mounted Bearing with square flanged Housing, measures an inner diameter of 20mm. Black oxide has certain properties and characteristics that makes it ideal for certain applications. It is used to add corrosion resistance and for appearance.

  • UCF204 Black Oxide Plated Insert Bearing
  • Mounted Bearing
  • Bolt Size: M10
  • Shaft Diameter: 20mm
  • Basic Load (Cr): 12,800 N
  • Basic Load (Cor): 6,650 N
  • Bearing No: UC204 Black oxide plated Bearing
  • Quantity: 1 Bearing

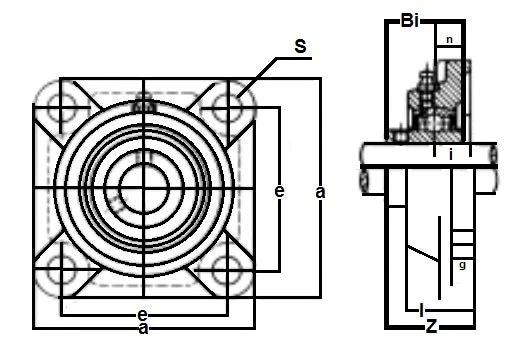

Dimensions (mm)
a e i g l s z Bi n
85.73 63.9 15.08 11.9 25.4 11.9 33.34 31 12.7
