20mm Bearing HCP204 Pillow Block Cast Housing Mounted Bearing - Eccentric Locking Collar

20mm Bearing HCP204 Pillow Block Cast Housing Mounted Bearing - Eccentric Locking Collar

$42.29 USD
$46.99 USD $42.29 USD
Promotion Épuisé
Frais d'expédition calculés à l'étape de paiement.

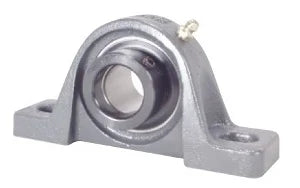

HCP204 Pillow Block Bearing with Eccentric Collar Lock
Set Screw Type High-Center Height
20mm Inner Diameter



HCP204 Pillow block bearing HCP204 is a set screw type high-center height bearing with an inner diameter of 20mm.

  • HCP204 Bearing
  • Pillow Block Mounted Bearing with Eccentric Collar Lock
  • Bolt Size: 3/8" inch
  • Basic Load (Cr): 12,800 N
  • Basic Load (Cor): 6,650 N
  • Bearing No: HC204
  • Housing No: P204
  • Quantity: 1 Bearing

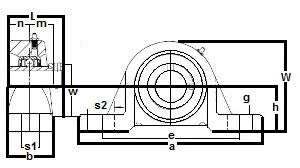

Dimensions (mm)
h a e b S2 S1 g W B1 n
30.16 127 95.25 38.1 19.05 12.7 12.7 64.3 31 18.3
