20mm 11' feet =132"es Rail Guideway System - Square Slide Unit

20mm 11' feet =132"es Rail Guideway System - Square Slide Unit

$299.70 USD
$333.00 USD $299.70 USD
Promotion Épuisé
Frais d'expédition calculés à l'étape de paiement.
We don't Offer International Shipping


20mm Linear Guideway System
11' feet = 132" inches long

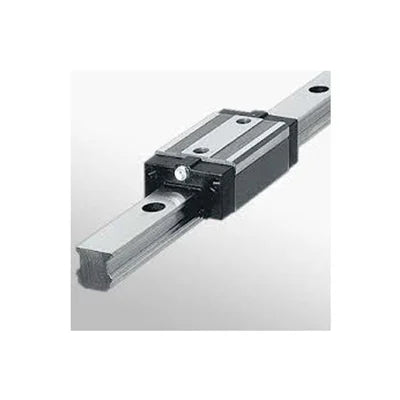

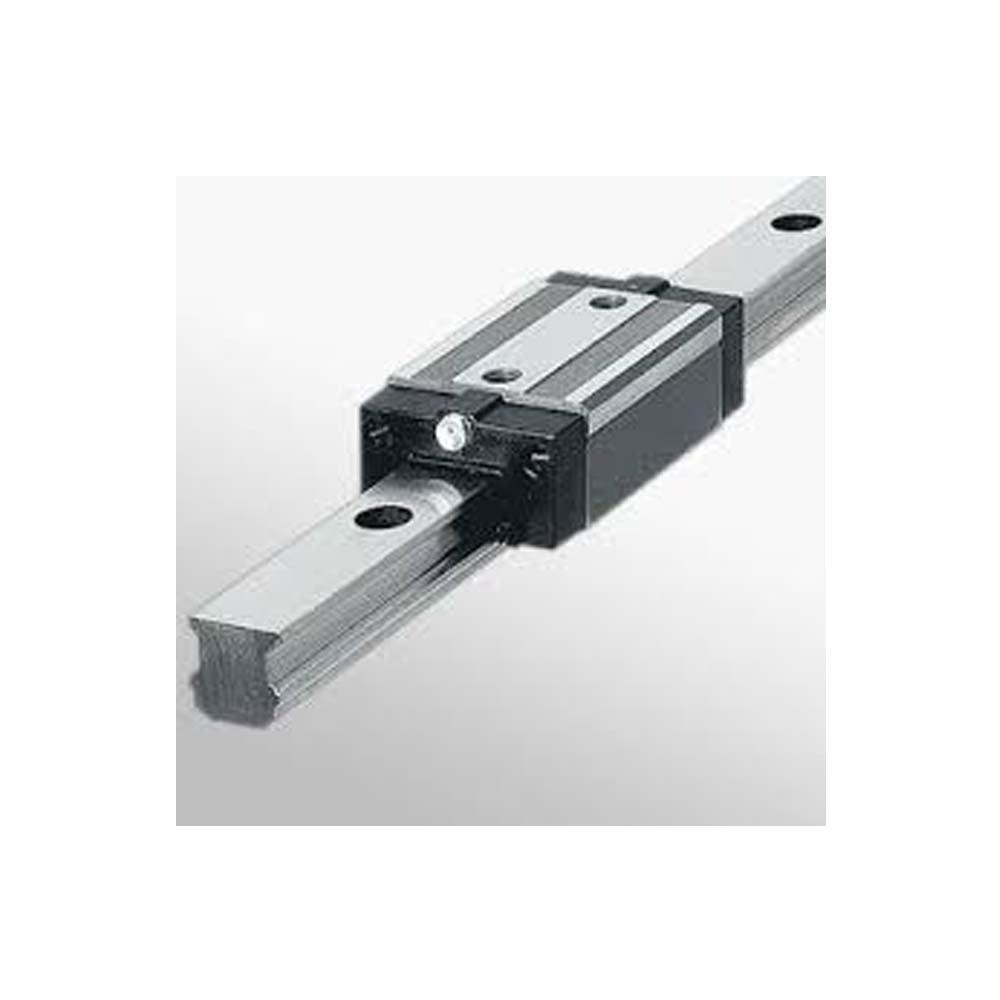

Complete linear guideway system with one Square block installed, Diameter Shaft is 20mm and Rail length is 132" Inch.

  • Diameter Shaft: 20mm
  • Rail length: 11' feet = 132" Inch
  • Block Dynamic load rating: 17.75 KN
  • Block Static load rating: 37.84 KN
  • High repeatability and smooth running performance
  • Stiffness, strength and accuracy for improved production processes




Rail

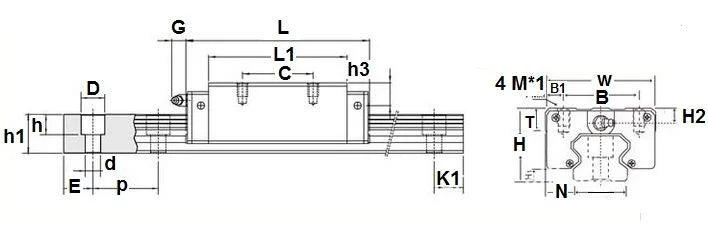

Name		 Rail Dimensions (mm) Block
Name		 Block Dimensions (mm)
H H1 N d D E P W B B1 C L1 L K1 G Mx1 T H2 H3
HYR20-4000 60 4.6 12 6 9.5 20 60 HYH20CA 44 32 6 36 50.5 77.5 12.25 12 M5x6 8 6 7
