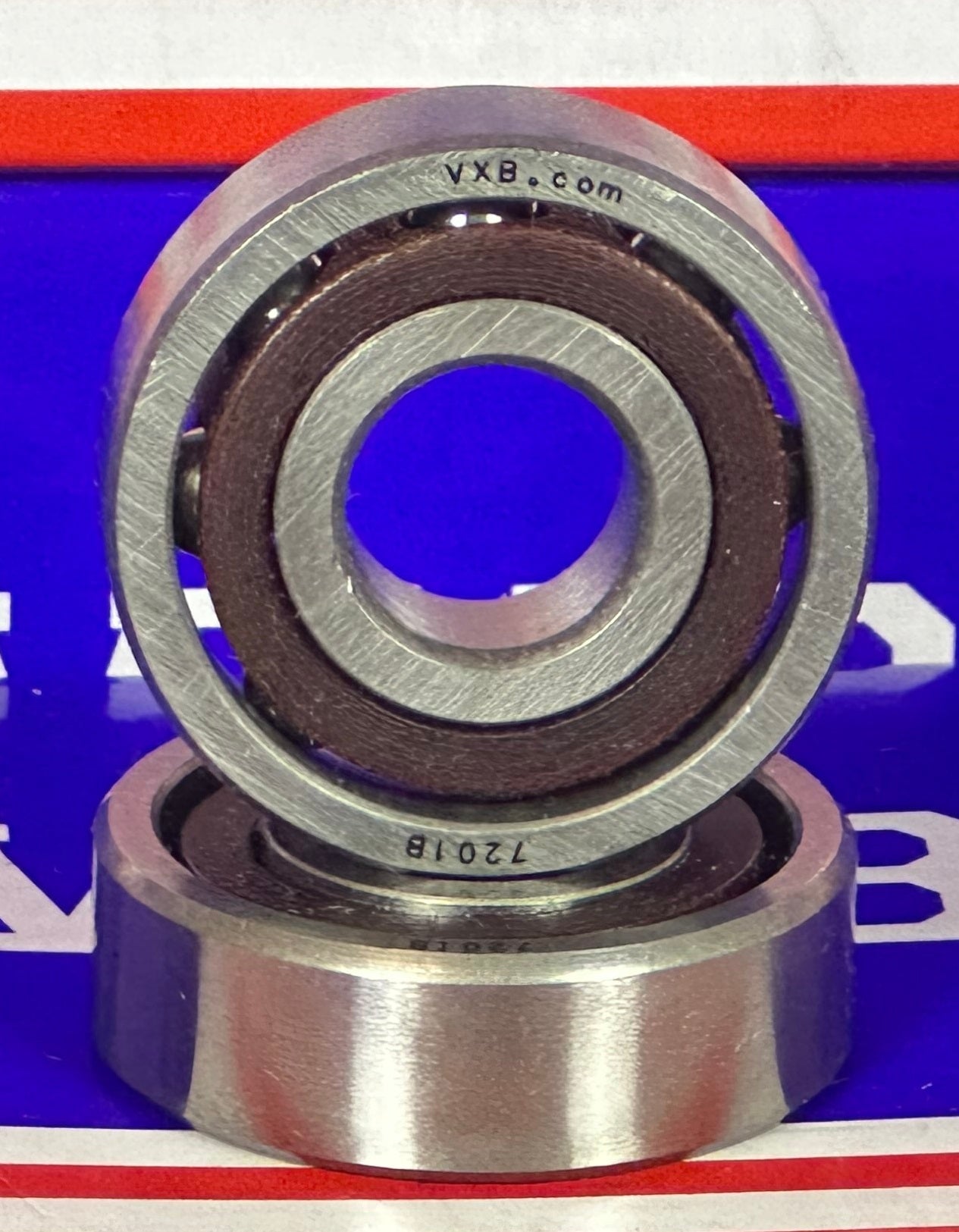

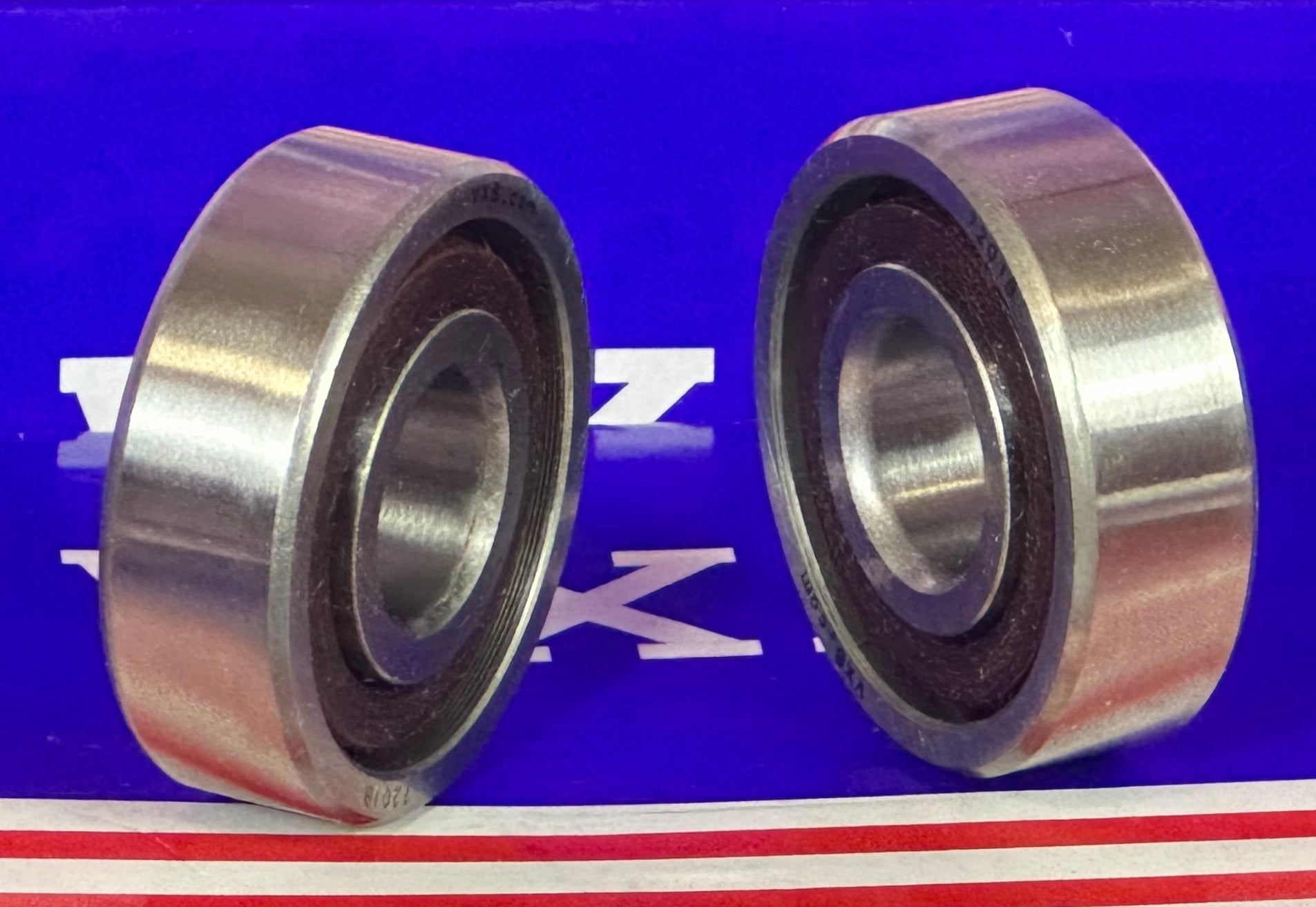

7201B Angular Contact Ball Bearings
12x32x10mm - Spindle Type - Set of 2
This set of two 7201B single row angular contact spindle ball bearings is designed for applications that require support for combined axial and radial loads, especially in high-speed rotating equipment. Ideal for machine tool spindles, pumps, and precision applications, these bearings allow axial loads to be handled in one direction only, making them perfect for paired configurations.
Manufactured from high-strength chrome steel, the 7201B delivers exceptional durability, smooth rotation, and precision alignment, even under demanding operating conditions.
🔧 Product Specifications:
-
✅ Model: 7201B
-
✅ Type: Single Row Angular Contact Ball Bearings (Spindle Bearings)
-
✅ Material: Chrome Steel
-
✅ Design: Supports combined axial (one-direction) and radial loads
-
✅ Inner Diameter: 12mm
-
✅ Outer Diameter: 32mm
-
✅ Width: 10mm
-
✅ Size: 12 x 32 x 10mm (Metric)
-
✅ Dynamic Load Rating (Cr): 7,200 N
-
✅ Static Load Rating (Cor): 3,800 N
-
✅ Limiting Speed:
-
Grease Lubrication: 17,000 RPM
-
Oil Lubrication: 24,000 RPM
-
-
✅ Quantity: 2 Bearings
⚙️ Engineered for high-precision spindle and rotary motion, 7201B angular contact bearings deliver optimal performance in systems requiring high speed, axial alignment, and radial load handling.
