2 1/4" Bearing HCF212-36 Square Flanged Cast Housing Mounted Bearing - Eccentric Collar

2 1/4" Bearing HCF212-36 Square Flanged Cast Housing Mounted Bearing - Eccentric Collar

$59.40 USD
$66.00 USD $59.40 USD
Promotion Épuisé
Frais d'expédition calculés à l'étape de paiement.
HCF212-36 Four Bolt Flange Unit
Set Screw Type with Eccentric Collar
2 1/4" Inch Inner Diameter


HCF212-36 Four Bolt Flange Unit, bearing is Set Screw Type, Inner Diameter is 2 1/4" inch.

  • HCF212-36
  • Flange Mounted Bearing with Eccentric collar
  • Bolt Size: 5/8" inch
  • Basic Load Dynamic (Cr): 52,400 N
  • Basic Load Static(Cor): 36,200 N
  • Bearing No: HC212-36
  • Housing No: F212
  • Quantity: 1 Bearing

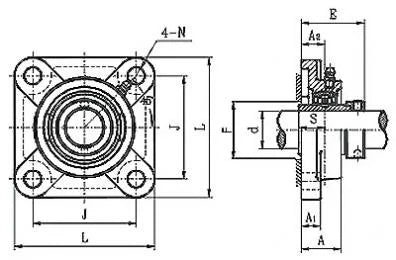

Dimensions (Inch)
d L J A2 A1 A E N S F min.
2 1/4" 6 7/8" 5 5/8" 1 5/32" 23/32" 1 7/8" 2 31/32" 23/32" 1 7/32" 3 1/32"
