17mm Bearing UCF203 Black Oxide Plated Insert + Square Flanged Cast Housing Mounted Bearing

17mm Bearing UCF203 Black Oxide Plated Insert + Square Flanged Cast Housing Mounted Bearing

$49.49 USD
$54.99 USD $49.49 USD
Promotion Épuisé
Frais d'expédition calculés à l'étape de paiement.

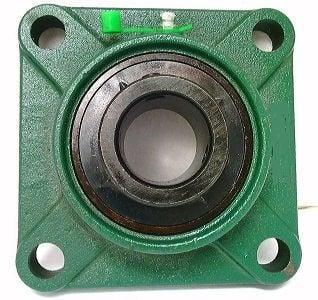

UCF203 17mm Mounted Black Oxide Plated Insert
+ Square Flanged Bearing
One Bearing

UCF203 17mm Mounted Black Oxide Plated Insert + Square Flanged Bearing, measures an inner diameter of 17mm. Black oxide has certain properties and characteristics that makes it ideal for certain applications. It is used to add corrosion resistance and for appearance.

  • UCF203 Bearing Black Oxide Plated Insert
  • Mounted Bearing
  • Bolt Size: M10
  • Shaft Diameter: 17mm
  • Basic Load (Cr): 12,800 N
  • Basic Load (Cor): 6,650 N
  • Bearing No: UC204
  • Quantity: 1 Bearing

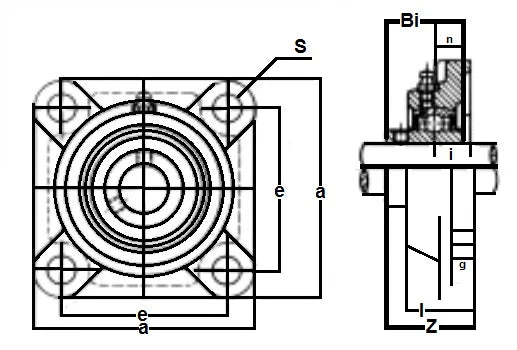

Dimensions (mm)
a e i g l s z Bi n
85.73 63.9 15.08 11.9 25.4 11.9 33.34 31 12.7
