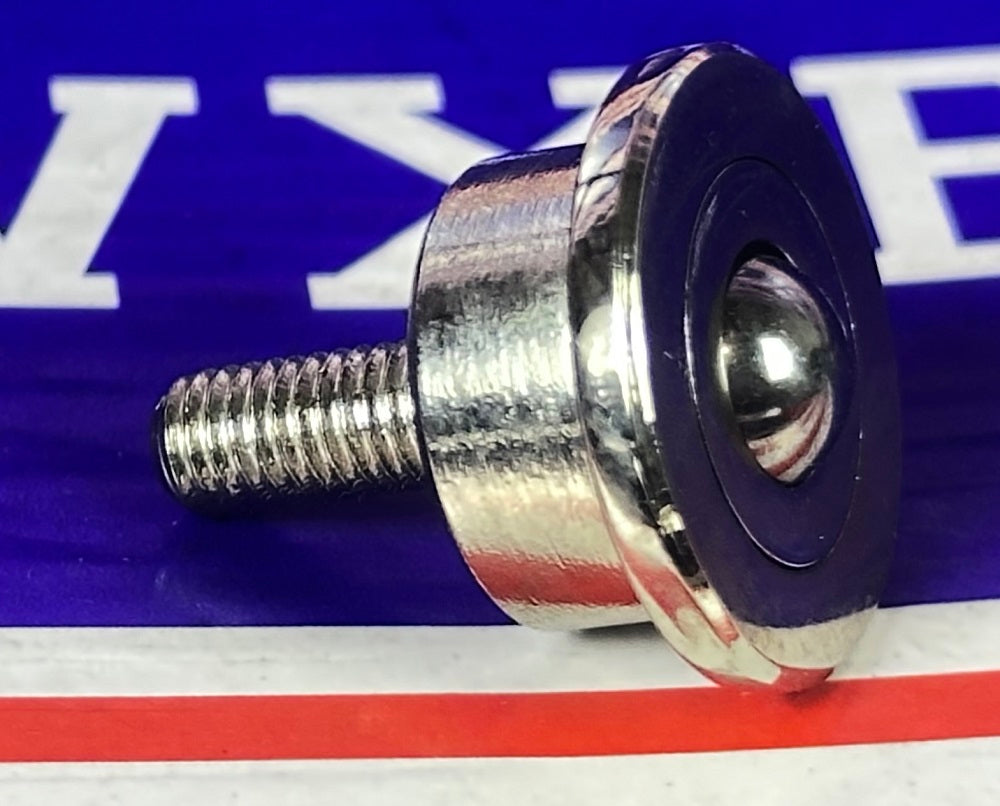

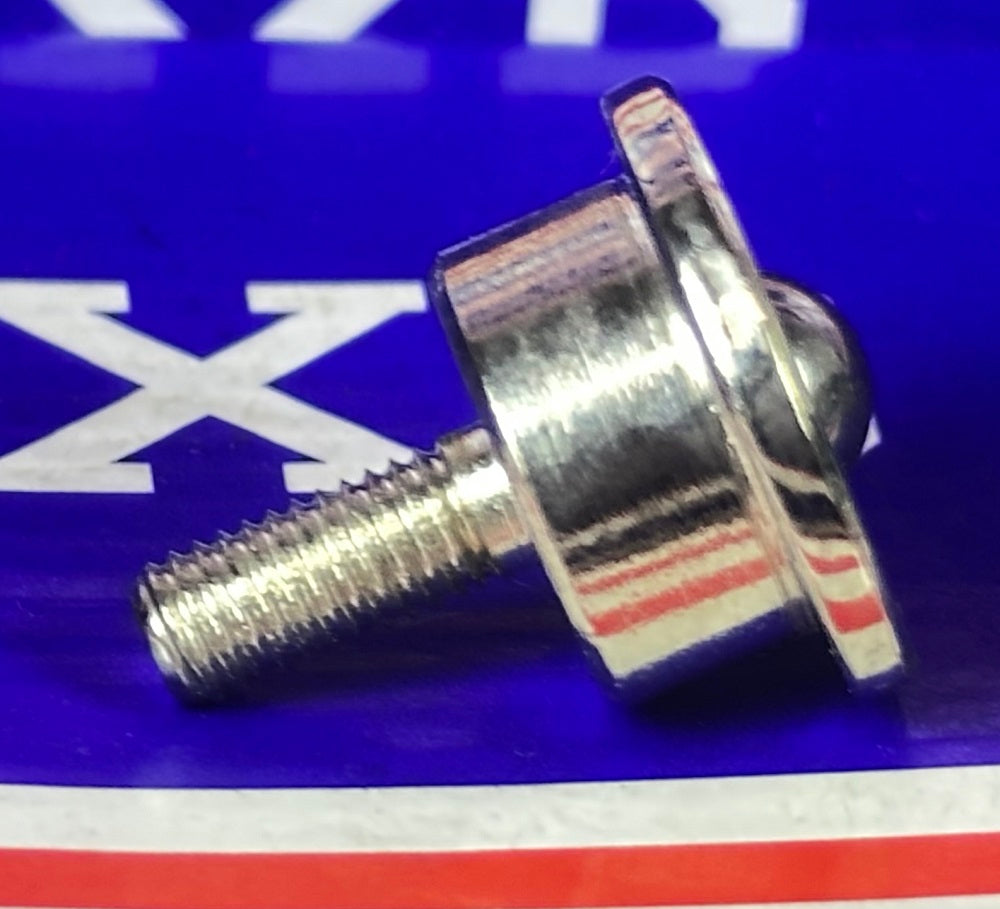

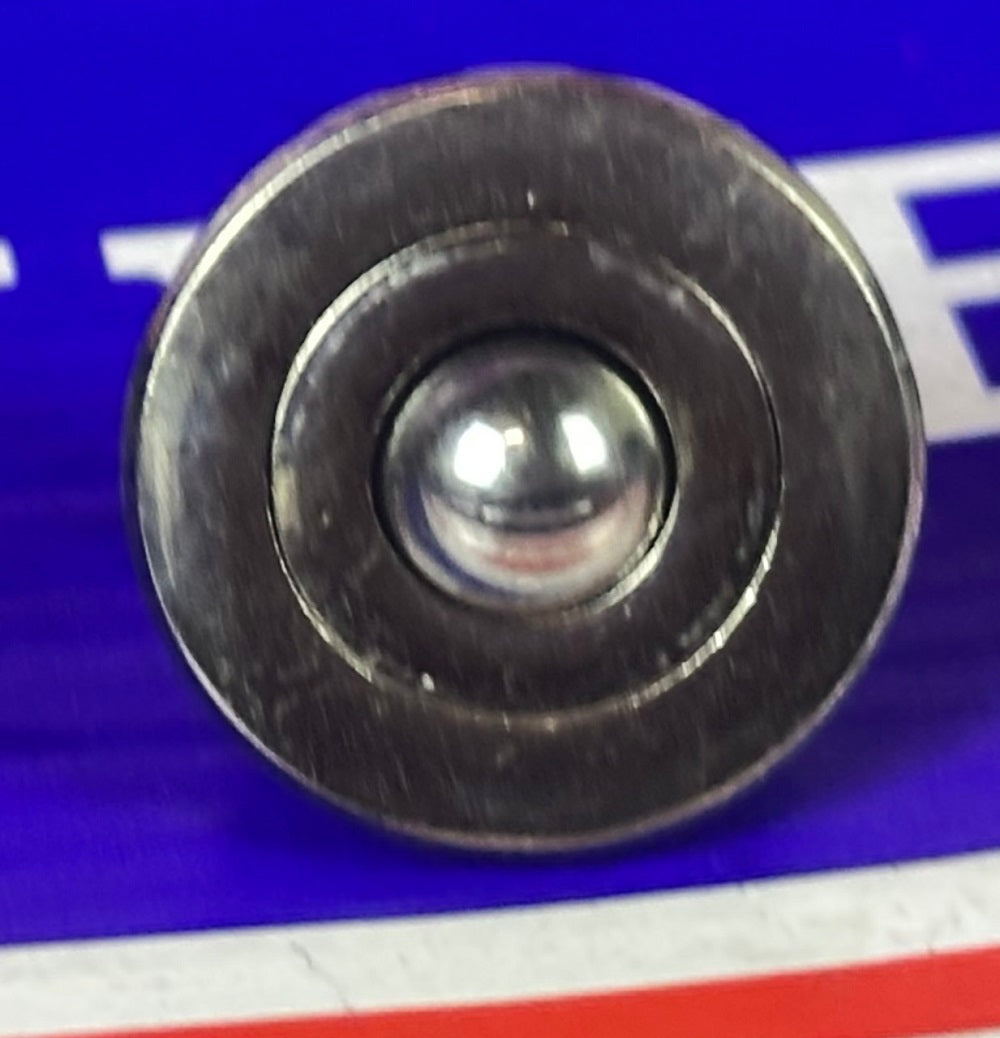

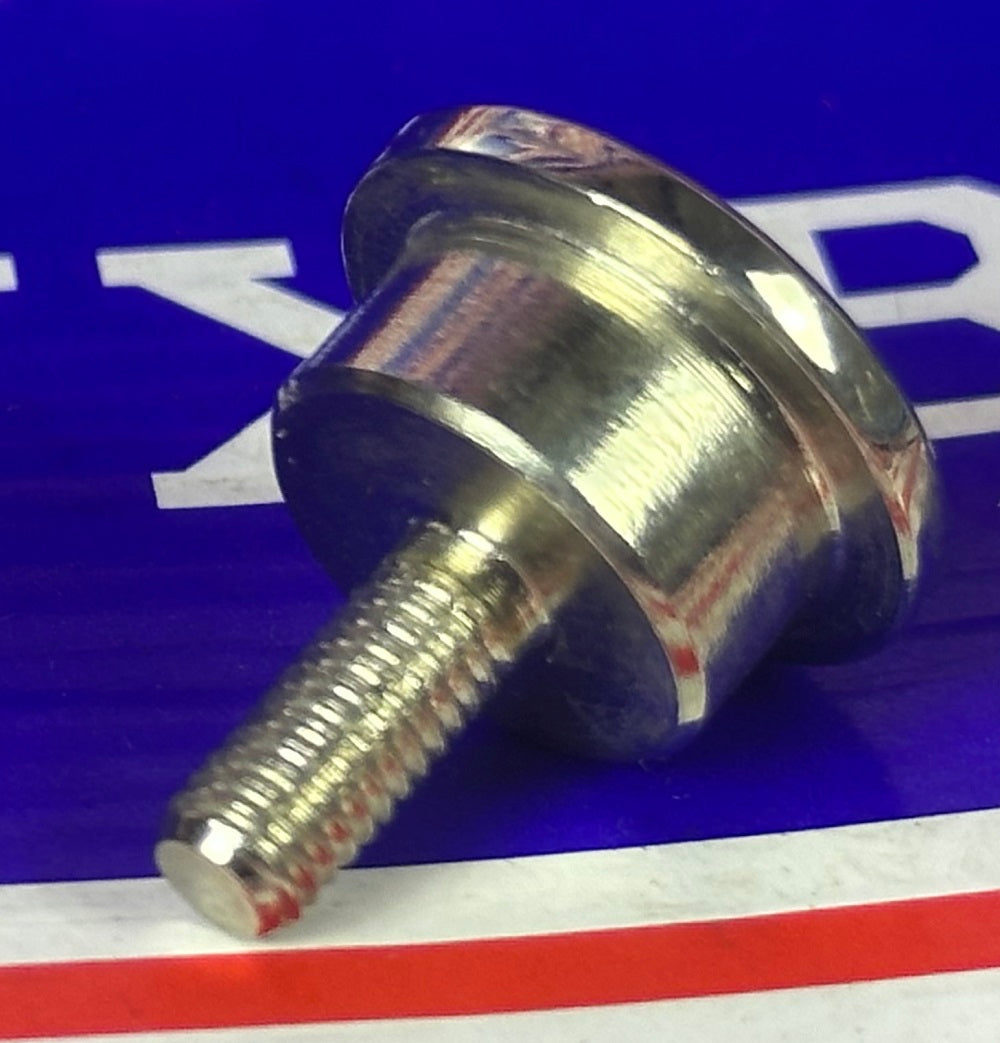

17 lbs Load Capacity Heavy Duty Machined Steel Ball Transfer Unit With M5 Threaded Bolt Bearing Transfer
  • 17 lbs ball Unit
  • Ball Transfer unit
  • Ball Material: Chrome plated
  • Support Ball: Chrome Plated
  • Load Capacity: 17 LBS
  • Breaking load: 33 LBS
  • Quantity: 1 Bearing
  • Solid Machined and Steel
  • Plated steel cover
  • Ball support cup is machined from solid steel and is hardened and plated for longevity
  • M5 threaded threaded Bolt Bearing transfer

Loading
Capacity
(lbs)		 Breaking
Loading
(lbs)
d
D
H
h1
h2
L
t
M		 Weight
(lb)
17 33 8mm 15mm 11.1mm 2mm 6.8mm 20mm 12mm M5
0.01
Dimensions in Inch 0.314" 0.59" 0.43" 0.078" 0.267" 0.787" 0.47" 0.196"
