16mm Round Flanged Long Bushing Linear Motion LBF16LUU

16mm Round Flanged Long Bushing Linear Motion LBF16LUU

$10.49 USD
$14.99 USD $10.49 USD
Promotion Épuisé
Frais d'expédition calculés à l'étape de paiement.
LBF16LUU Round Flanged Linear Motion
Long Ball Bushing 16mm


 LBF16LUU Round Flanged Linear Motion Long Ball Bushing, inner diameter is 16mm, outer diameter is 28mm, and length is 70mm.
  • LBF16LUU Ball Bushing
  • Flanged Linear Motion Ball Bushing
  • Inner Diameter: 16mm
  • Outer Diameter: 28mm
  • Length: 70mm
  • Dynamic load rating: 1230 N
  • Static load rating: 2350 N
  • Quantity: 1 Bearing

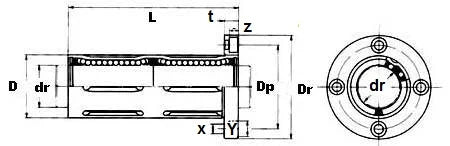

Major dimensions and tolerance (mm)
dr D L Flange
mm tolerance mm tolerance mm tolerance Df K t Dp X Y Z
16 0-10 28 0-16 70 300 48 37 6 38 4.5 7.5 4.1
