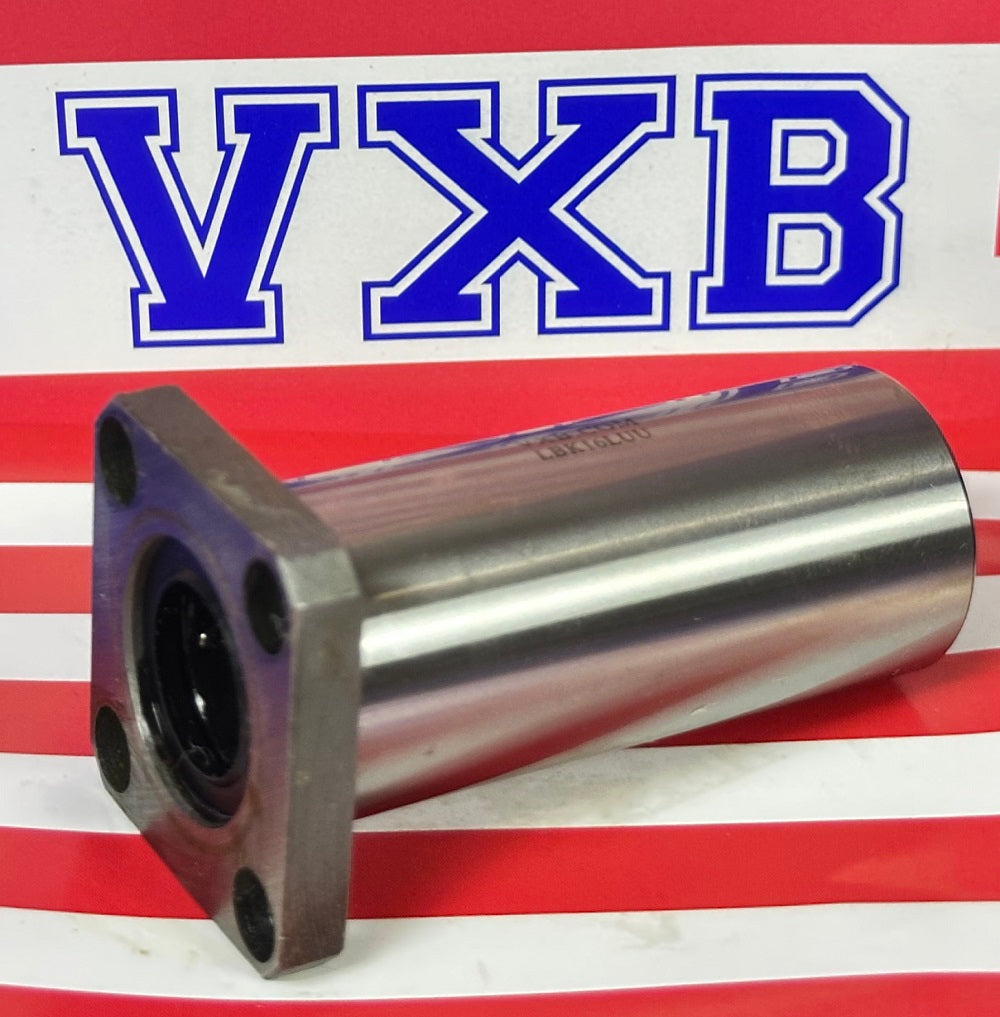

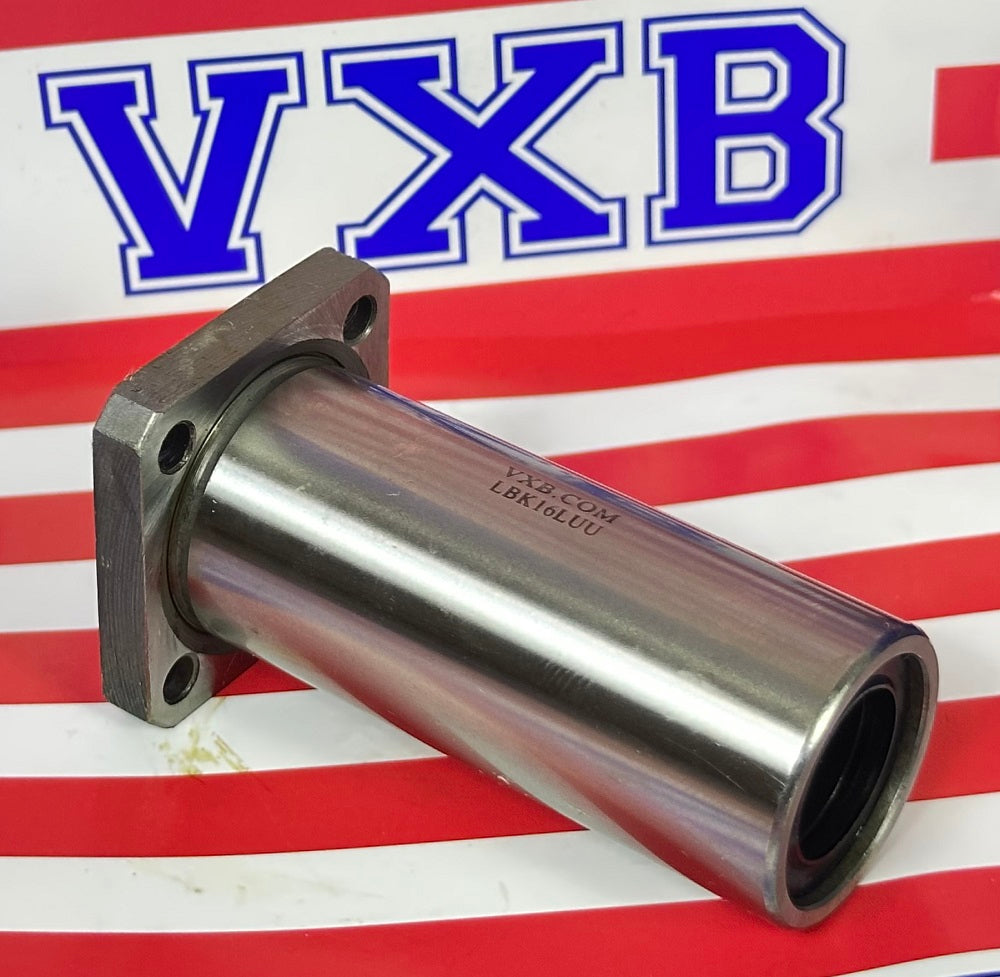

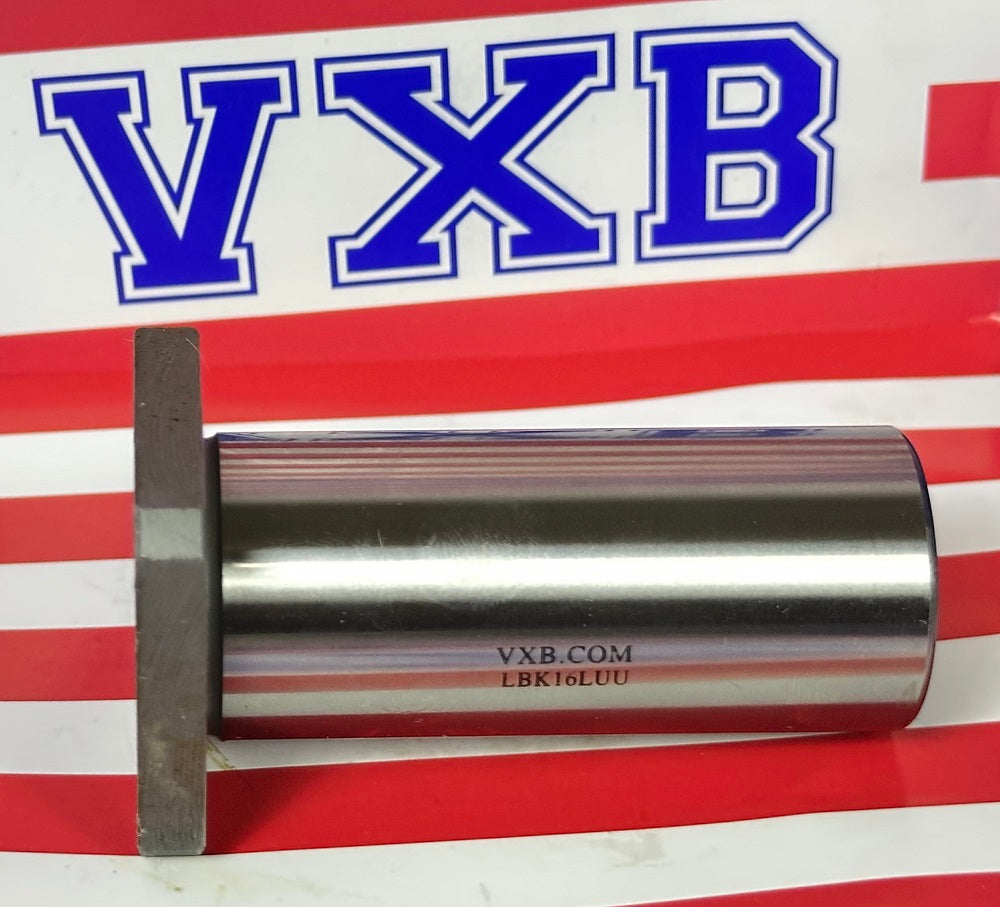

LBK16LUU Square Flanged Linear Motion
Long Ball Bushing 16mm |
|
LB16LUU Square Flanged Linear Motion Long Ball Bushing, inner diameter is 16mm, outer diameter is 28mm, and length is 70mm.
- LB16LUU Ball Bushing
- Flanged Linear Motion Ball Bushing
- Inner Diameter: 16mm
- Outer Diameter: 28mm
- Length: 70mm
- Dynamic load rating: 1230 N
- Static load rating: 2350 N
- Quantity: 1 Bearing
|
|

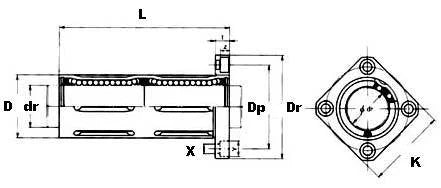

Major dimensions and tolerance (mm)
|
|---|
| dr |
D |
L |
Flange |
| mm |
tolerance |
mm |
tolerance |
mm |
tolerance |
Df |
K |
t |
Dp |
X |
Y |
Z |
| 16 |
0-10 |
28 |
0-13 |
70 |
300 |
48 |
37 |
6 |
38 |
4.5 |
7.5 |
4.1 |
