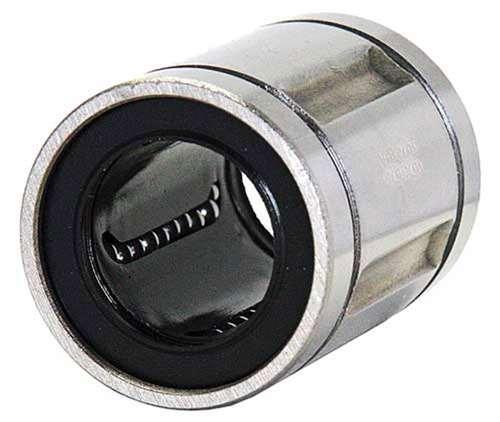

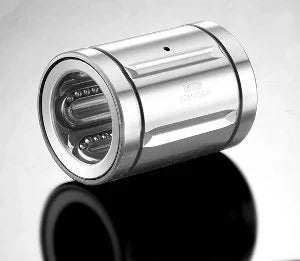

16mm Ball Bushing SDM16GA 16x28x37 Linear Motion Bearing
16mm Ball Bushing SDM16GA 16x28x37 Linear Motion Bearing
Prix habituel
$10.49 USD
Prix habituel
$14.99 USD
Prix promotionnel
$10.49 USD
Prix unitaire
/
par
Frais d'expédition calculés à l'étape de paiement.
Impossible de charger la disponibilité du service de retrait
| Linear Ball Bushings SDM16GA Works with 16mm Shafts 16mm x 28mm x 37mm |
SDM16GA Linear Ball Bushing works with a 30 mm Shafts, Size is 16mmx 45mmx 64mm, bearing inner Diameter is 16mm, bearing outer Diameter is 28mm and bearing Length is 37mm.
|
|
|
|
||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

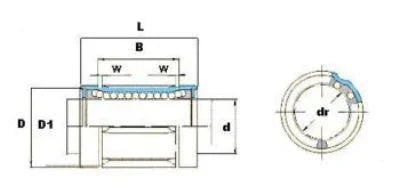

| dr | D | L | B | W | D1 | h1 | Precision (mm) |
High (mm) |
|||||
| mm | tolerance | mm | tolerance | mm | tolerance | mm | tolerance | ||||||
| Precision | High | ||||||||||||
| 16 | 0-6 | 0-9 | 28 | 0-13 | 37 | 0-200 | 26.5 | 0-200 | 1.6 | 27 | 1.5 | 8 | 12 |
