15mm 42.5 Rail Guideway System Square Slide Unit Linear Motion

15mm 42.5 Rail Guideway System Square Slide Unit Linear Motion

$280.80 USD
$312.00 USD $280.80 USD
Promotion Épuisé
Frais d'expédition calculés à l'étape de paiement.
We don't Offer International Shipping

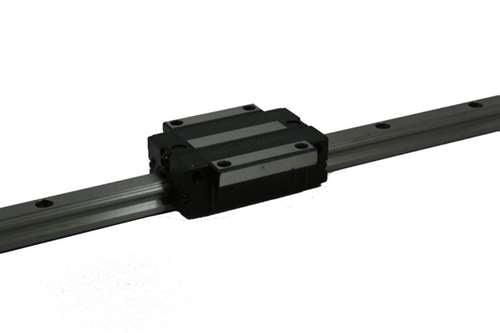

15mm Linear Guideway System
42.5" Inch length Rail

Complete linear guideway system with one Square block installed, Diameter Shaft is 15mm and Rail long is 42.5" Inch.

  • Diameter Shaft: 15mm
  • Rail length: 42.5" Inch
  • Block Dynamic Load Rating: 11.38 KN
  • Block Static load rating: 23.31 KN
  • High repeatability and smooth running performance
  • Stiffness, strength and accuracy for improved production processes

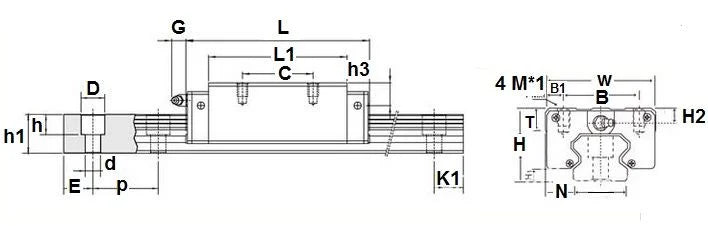

Rail
Name		 Rail Dimensions (mm) Block
Name		 Block Dimensions (mm)
H H1 N d D E P W B B1 C L1 L K1 G Mx1 T H2 H3
HYR15-4000 28 4.3 9.5 4.5 7.5 20 60 HYH15CA 34 26 4 26 39.4 61.4 10 5.3 M4x5 6 7.95 7.7
