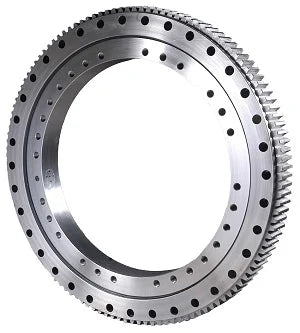

15 Inch Four-Point Contact 369x554x55mm Ball Slewing Ring Bearing - Outside Gear
15 Inch Four-Point Contact 369x554x55mm Ball Slewing Ring Bearing - Outside Gear
Prix habituel
$1,012.50 USD
Prix habituel
$1,125.00 USD
Prix promotionnel
$1,012.50 USD
Prix unitaire
/
par
Frais d'expédition calculés à l'étape de paiement.
Impossible de charger la disponibilité du service de retrait

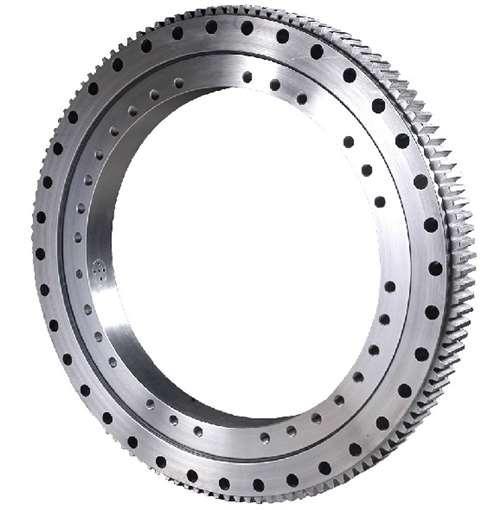

15 Inch Four-Point Contact 369x554x55 mm Ball Slewing Ring Bearing with Outside Gear
| Four-Point Contact Ball Slewing Bearing with Outside Gear |
A slewing bearing ring is a rotational rolling-element bearing that typically supports a heavy but slow-turning or slow-oscillating load, often a horizontal platform such as a conventional crane, or the wind-facing platform of a horizontal-axis windmill. (To 'slew' means to turn without change of place.) |

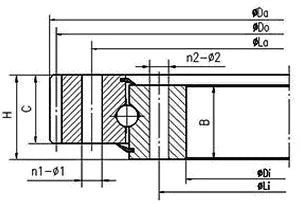

| Outside Dimensions(mm) | Shoulder Dimensions(mm) | Physical Dimensions(mm) | Gear Parameter | Gear Peripheral force | |||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Dp | De | D | d | T | D0 | d0 |
n |
C |
M |
n1 |
d1 | D1 | B | S | b | m |
z |
x |
ha |
Normalizing (KN) | Slack Quench (KN) |
| VXB01120450401 | 554 | 554 | 369 | 55 | 500 | 400 | 16 | 16 | 14 | 2 | 451 | 449 | 46 | 9 | 46 | 5 | 108 | 0.5 | 0.9 | 29 | 44 |
