1310 Self Aligning Ball Bearing 50x110x27mm

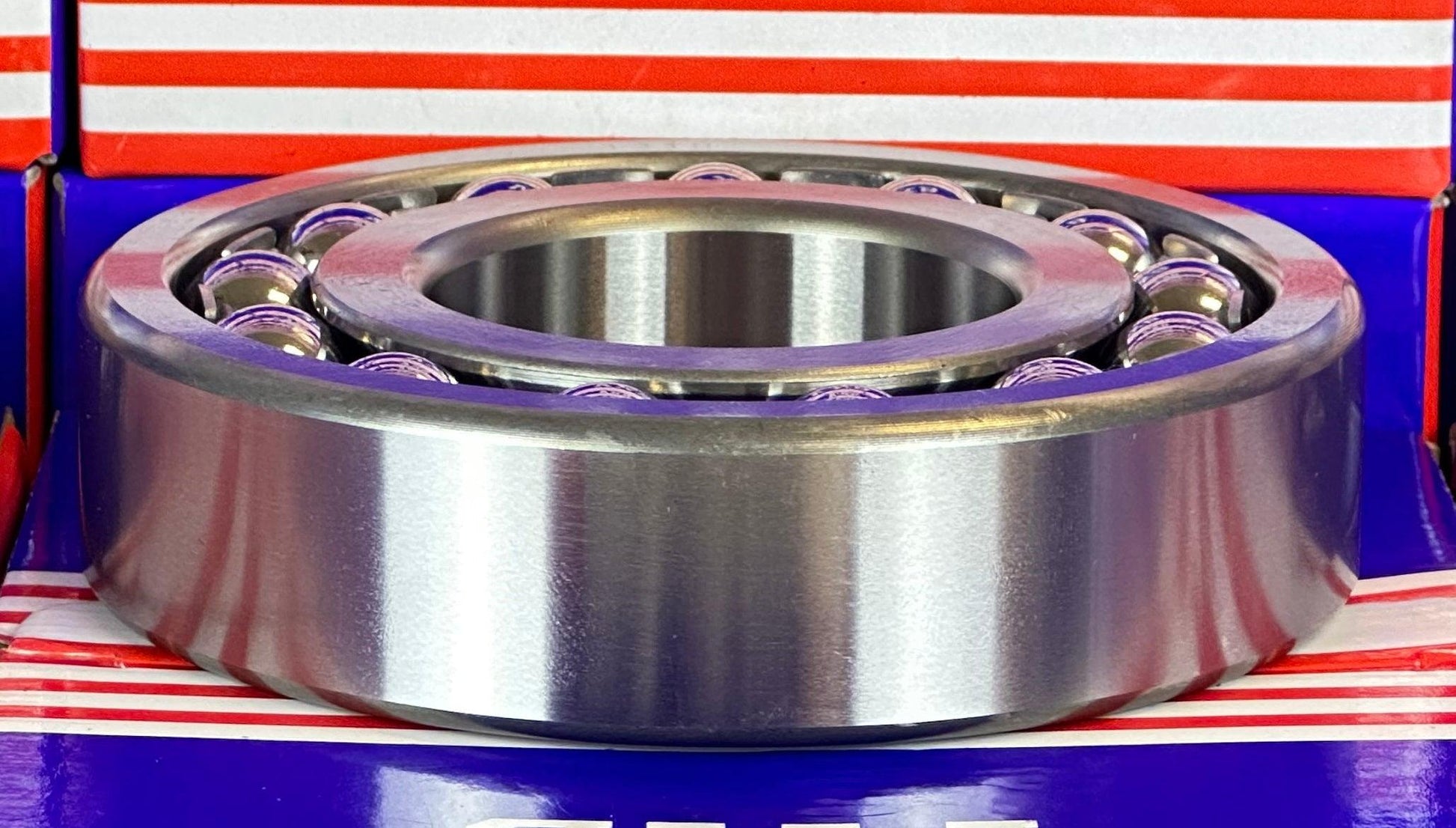

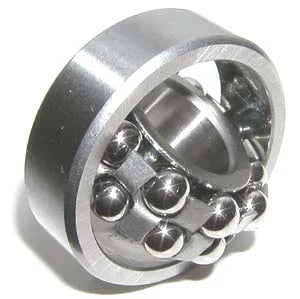

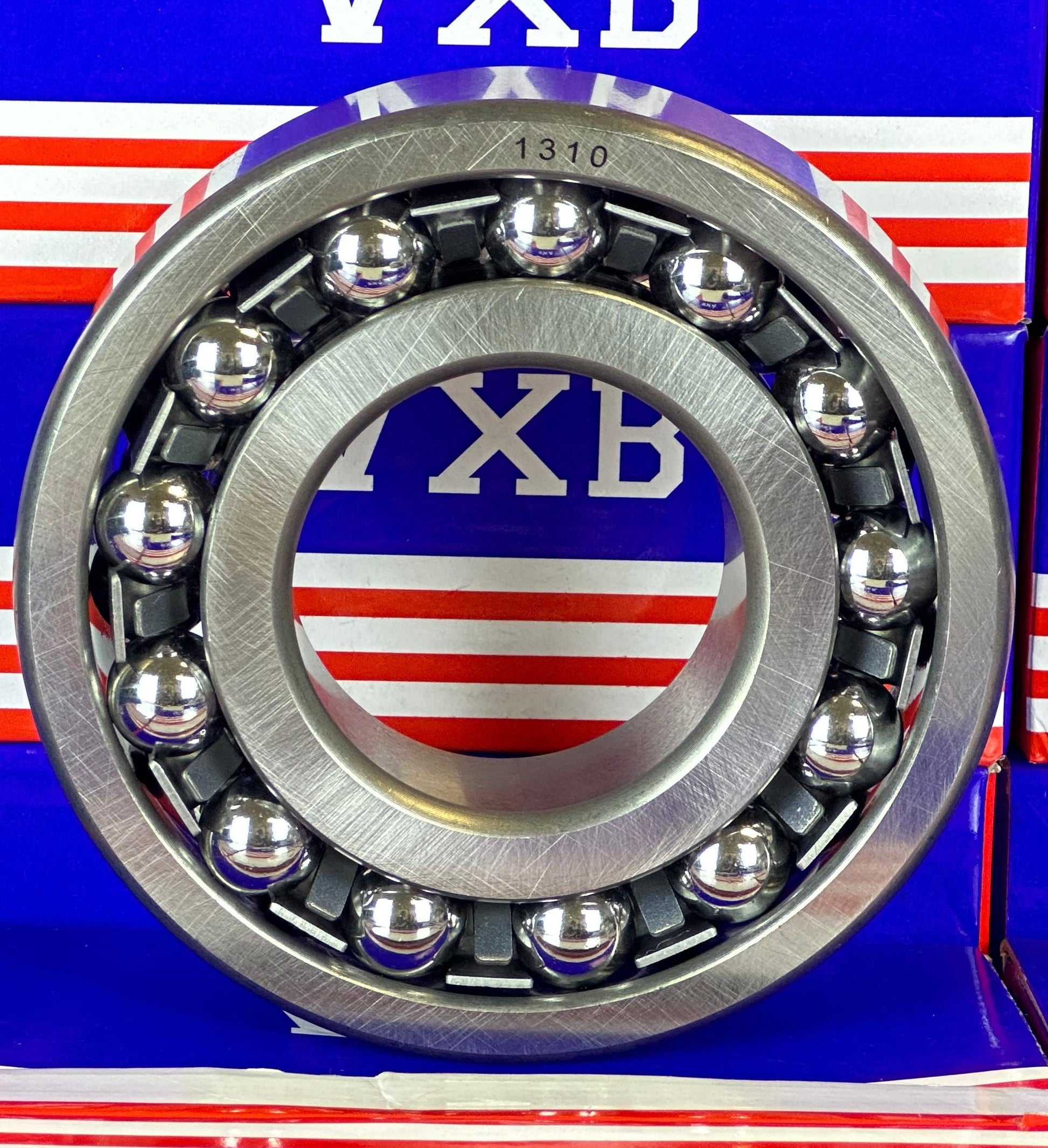

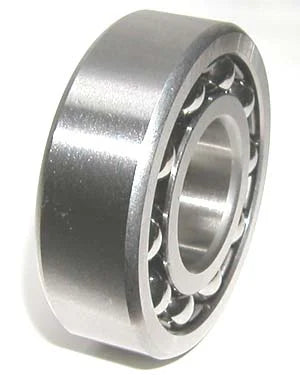

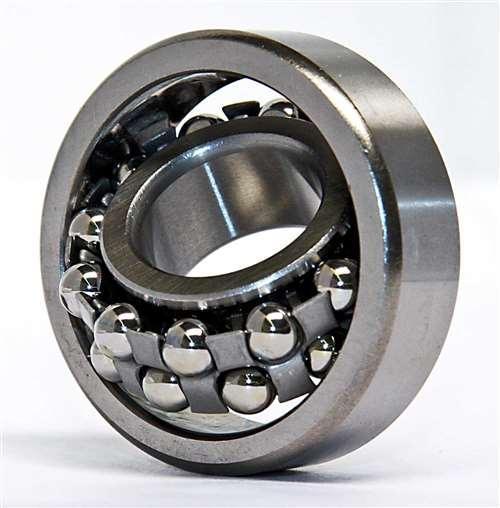

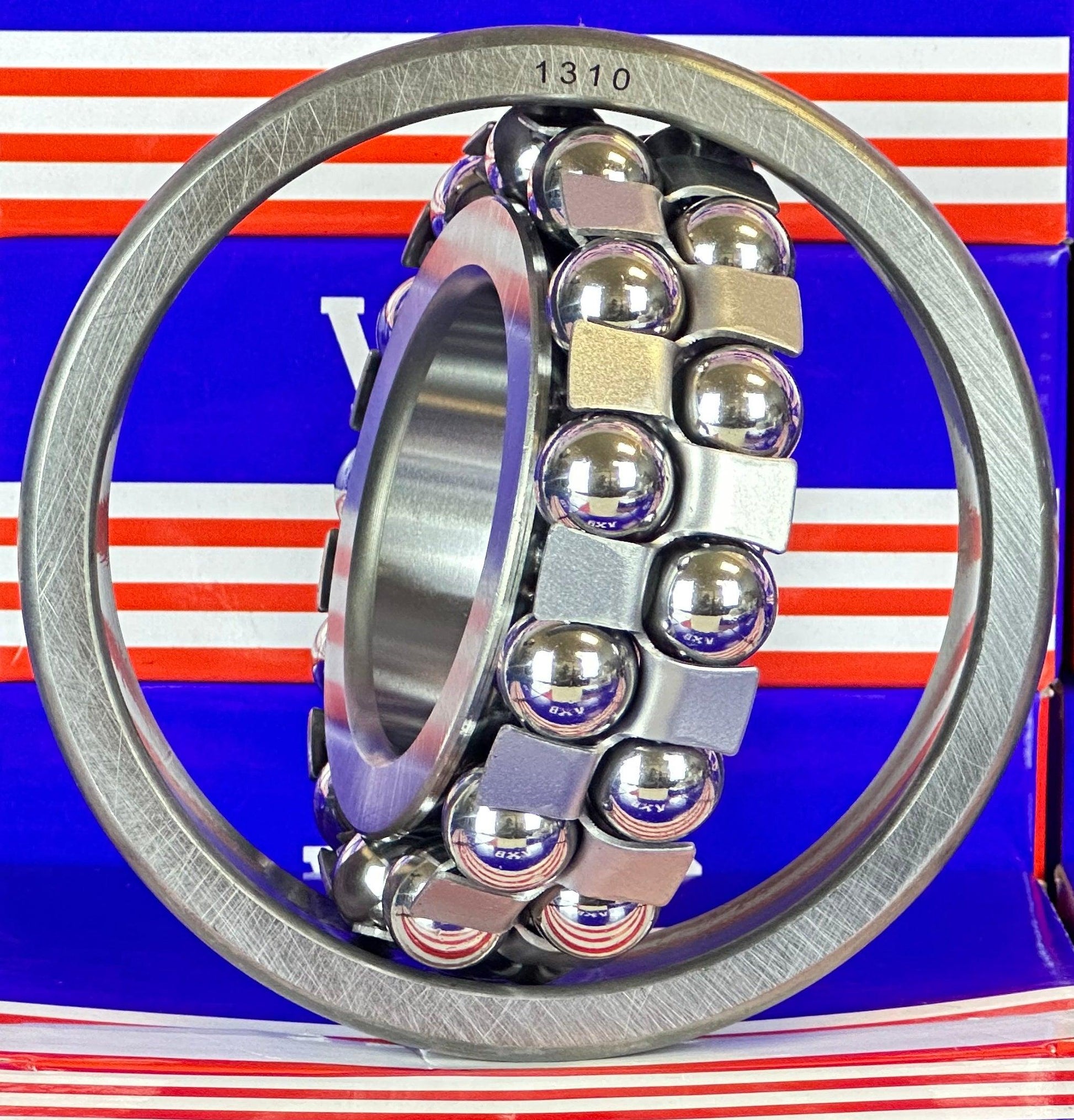

1310 Self-Aligning Ball Bearing
✔️ 50mm ID - 110mm OD - 27mm Width

The 1310 self-aligning ball bearing is designed to compensate for shaft misalignment and mounting imperfections. Its spherical outer raceway allows the inner ring and balls to adjust automatically during operation, making it ideal for applications with shaft deflection or poor housing accuracy.

✅ Pack size: 1 bearing
✅ Type: Self-aligning ball bearing
✅ Size: 50mm x 110mm x 27mm
✅ Inner diameter: 50mm
✅ Outer diameter: 110mm
✅ Width: 27mm
✅ Dynamic load rating: 43,500 N
✅ Static load rating: 14,100 N
✅ Max speed (grease): 5,600 RPM
✅ Max speed (oil): 6,700 RPM

💡 How do self-aligning bearings correct shaft misalignment?
The spherical outer raceway allows the rolling elements and inner ring to pivot slightly inside the outer ring, automatically correcting misalignment from improper mounting or shaft bending - ensuring smoother operation and reduced internal stress.
